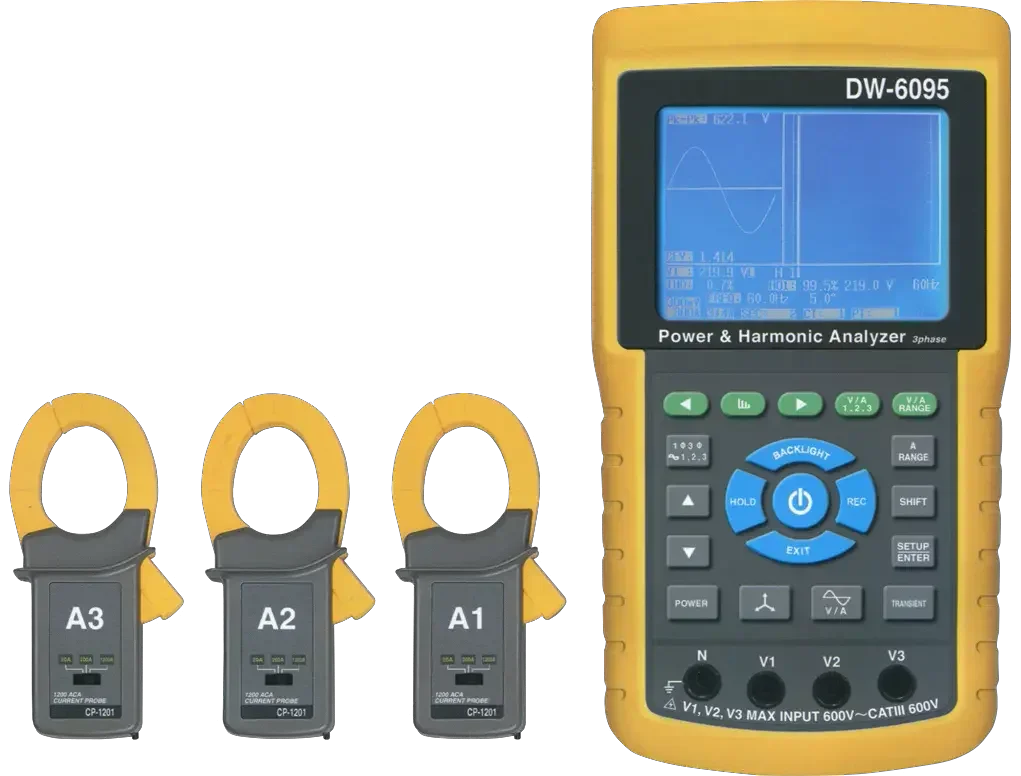

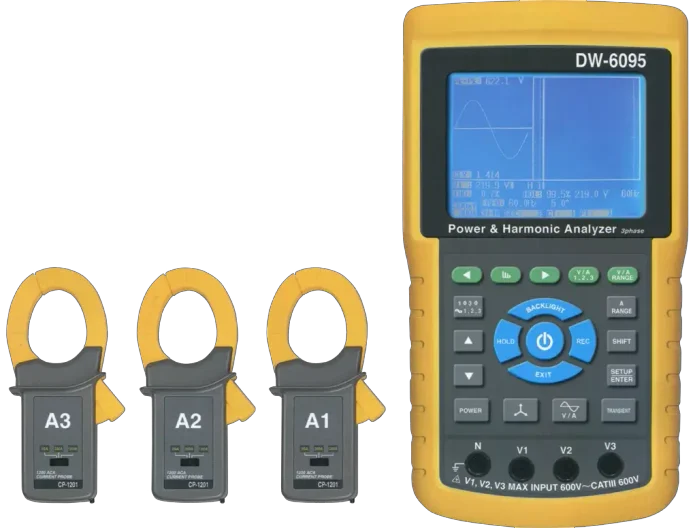

אנלייזר הספק 3 פאזות עם אוגר נתונים ומדידת הרמוניות
עם 3 צבתות לשוש תחומי זרם:20A,200A,1200A
1 P/2W, 1 P/3W, 3P/3W, 3P/4W.
* 3 current probes ( CP-1201 ) are included, if
change the current probes, the calibration
procedures are not necessary.
* Current probe input signal/ranges with
selection:
Input signal (ACV) :
200 mV/300 mV/SOO mV/1 V/2 V/3 V.
Ranges (ACA) :
20 N200 N2000 N30 N300 N 3000 A.
* Meter can cooperate the universal current
probes.
* Complete set with 4 PCs Test Leads, 4 PCs
Alligator clips, 3 PCs Clamp Probe
(CP 1201 ), AC to DC 9V adapter, 2 G SD
memory card and Carrying bag.
* Measurement:
V (phase-to-phase), V (phase-to-ground)
A (phase-to-ground)
KW / KVA / KVAR / PF (phase)
KW / KVA / KVAR / PF (system)
KWH / KVAH / KVARH / PFH (system)
Phase angle
* Harmonics display (1-S0th order).
* Simultaneous display of Harmonics and
Wave form.
* Display of Wave form with Peak Values.
* Analysis of Total Harmonic Distortion ( THD ).
* Graphic Phase diagram with 3-Phase
system parameters.
* 3 phase Voltage or Current Unbalanced
Ratio (VUR, VIR) and Unbalanced Factor.
* Calculated Unbalanced Current through
Neutral Line ( In ).
* Capture Transient events (including Dip,
Swell and Outage) with programmable
threshold ( % ).
* Programmable CT ratio ( 1 to 600 ) and
PT ratio ( 1 to 1000 ).
* ACV input impedance is 10 Mega ohms.
* Safety Standard: IEC 1010, CAT 111600V.
* Built-in clock and Calendar, real time data
record with SD memory card, sampling
time set from 2 to 7200 seconds. Just slot in
the SD card into the computer, it can down
load the all the measured value with the
time information ( year, month, data, hour,
minute, second) to the Excel directly, then
user can make the further data analysis by
themselves.
* Powered by AA ( UM-3 ) DC 1.S V X 8
batteries
( Alkaline type) or DC 9V adapter.
* Computer data output, can cooperate with
optional USB Cable/USB-01, RS232
cable/UPCB-02 and Data Acquisition
software, SW-811.
* Optional current probes: CP-1201,
CP-2000, CP-200, CP-3000, detail
specification, refer to page C-S.
* User can order the meter only ( without the
current probes) with the special request as
intend to cooperate their own current
probes.
* Patented.
