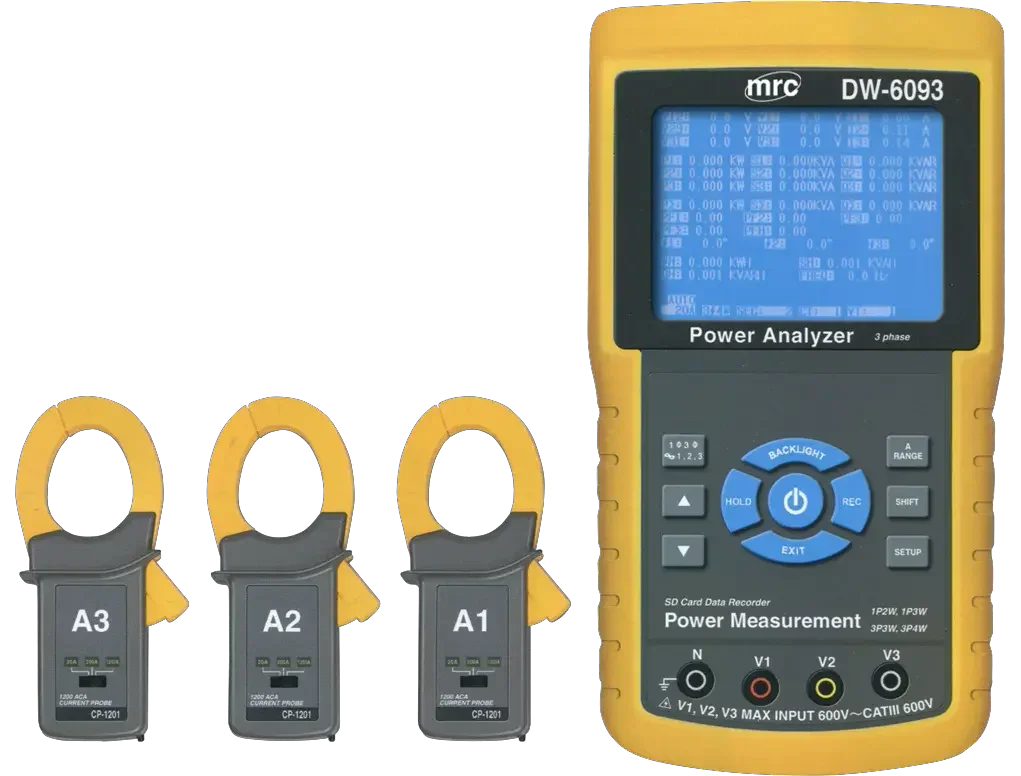

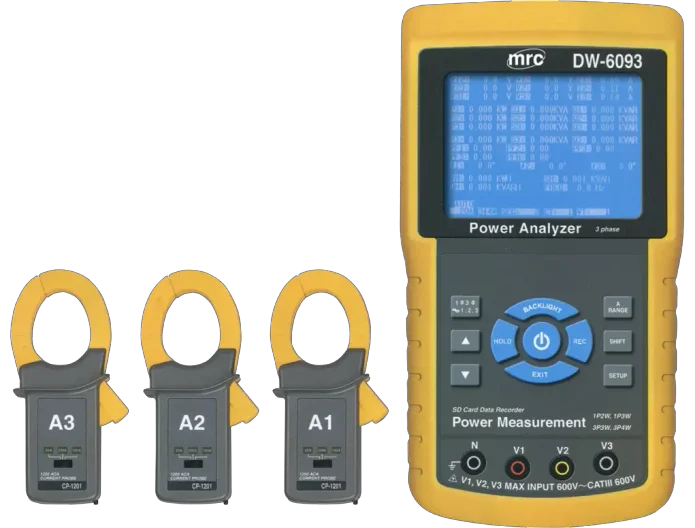

אנלייזר הספק 3 פאזות עם אוגר נתונים
עד 3000אמפר\600וולט
1 P/2W, 1 P/3W, 3P/3W, 3P/4W.
* 3 current probes ( CP-1201 ) are included,
if change the current probes, the calibration
procedures are not necessary.
* Current probe input signal/ranges with
selection:
Input signal (ACV) :
200 mV/300 mV/SOO mV/1 V/2 V/3 V.
Ranges (ACA) :
20 Al200 Al2000 Al30 Al300 Al3000 A.
* Meter can cooperate the universal current
probes.
* Complete set with 4 PCs Test Leads, 4 PCs
Alligator clips, 3 PCs Clamp Probe
(CP-1201 ), AC to DC 9V adapter, 2 G SD
memory card and Carrying bag.
* Voltage & Current are the True RMS value.
* True Power ( KW MW GW ).
* Apparent Power ( KVA MVA GVA ).
* Reactive Power ( KVAR MVAR GVAR).
* Watt-Hour ( WH SH QH PFH ).
* Power Factor ( PF ), Phase Angle ( Degree ).
* Voltage range : 1 0 to 600 ACV.
* Current range: 0.2 to 1200 ACA, CP-1201.
* Programmable CT ratio ( 1 to 600 ) and
PT ratio ( 1 to 1000 ).
ACV input impedance is 10 Mega ohms.
* Safety Standard: IEC 1010, CAT III 600V.
* Built-in clock and Calendar, real time data
record with SD memory card, sampling
time set from 2 to 7200 seconds. Just slot in
the SD card into the computer, it can down
load the all the measured value with the
time information ( year, month, data, hour,
minute, second) to the Excel directly, then
user can make the further data analysis by
themselves.
* Powered by AA ( UM-3 ) DC 1.5 V X 8
batteries
( Alkaline type) or DC 9V adapter.
* Computer data output, can cooperate with
optional USB Cable/USB-01, RS232
cable/UPCB-02 and Data Acquisition
software, SW-811.
* Optional current probes: CP-1201,
CP-2000, CP-200, CP-3000, detail
specification, refer to page C-S.
* User can order the meter only ( without the
current probes) with the special request as
intend to cooperate their own current
probes.
* Patented.
