אנלייזר מוליכות תרמי לחול-עם חישוב אוטומטי של עקומת הייבוש

Thermal ConductivityRange: TC-S70 sensor 1.3-10.3 [W/m] TC-S100 sensor 0.8-6.0 [W/m] Accuracy: ±5%
Temperature SensorStorage/Drying Range: - 50 to +120 °C Operation Range: -40 to 85 °C Resolution: 0.01 °C Accuracy: ±0.1 °C
Heater CurrentRange: 20-200 mA Resolution: 10 μA Accuracy: ±0.05%
Heater PowerRange: 0.5-20 W/m (depending on sensor needle) Resolution: 20 mW/m Accuracy: ±0.1 %
communication specifications
Power Requirements12V/1A
Computer CompatibilityMicrosoft® Windows® 10 operating system or newer
physical specifications
DimensionsLength: 162.0 mm (6.38 in) Width: 185.0 mm (7.28 in) Height: 30.0 mm (1.18 in)
TC-S70 Sensor DimensionsLength: 114.0 mm (4.49 in) Width: 19.4 mm (0.76 in) Height: 13.25 mm (0.52 in)
TC-S100 Sensor DimensionsLength: 144.0 mm (5.67 in) Width: 19.4 mm (0.76 in) Height: 13.25 mm (0.52 in)

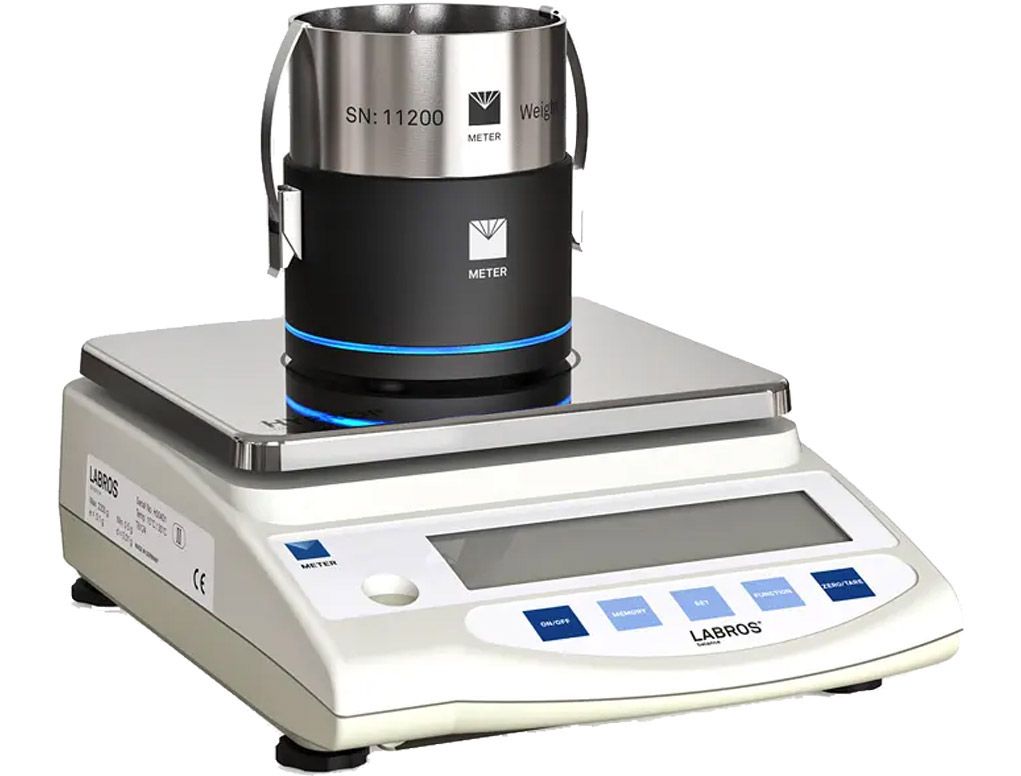

HYPROP balance specifications
Connection to ComputerUSB
Weighing Range2,200 g
Readout0.01 g
Reproducibility0.01 g
Linearity0.01 g
AdjustmentInternally
ComplianceEM ISO/lEC 17050 :2010 (CE Mark)
