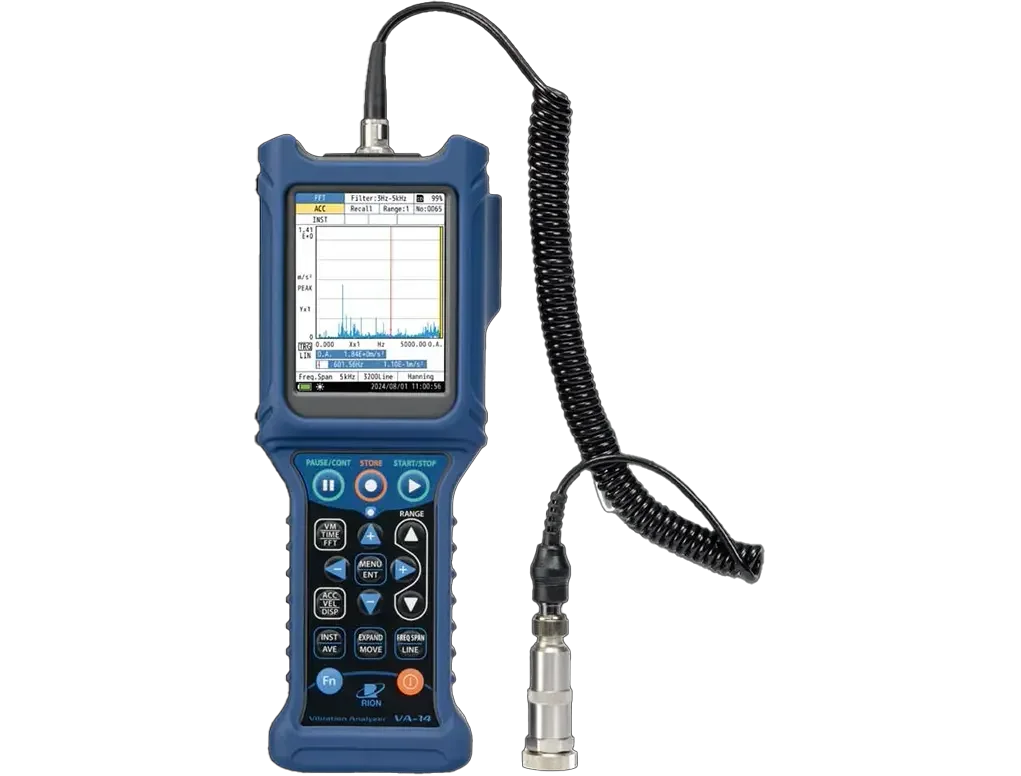

מד רעידות משוכלל תוצרת RION יפן.
עם פונקציית ניתוח FFT.לא כולל תוכנה
LAN terminal USB Type-C connector for controlling
the device and transferring files stored on the SD card.
Power supply via USB Type-C connector.
Simultaneous measurement of acceleration, velocity,
displacement, and acceleration crest factor.
Filters (HPF, LPF) can be set for acceleration,
velocity, and displacement respectively.
In FFT mode, “TOP10” displays the top 10 spectrum
data and “PEAK10” displays the top peak data.
Imperial units (G, inch/s, mils).
Include
PV-57IAccelerometer, 5.1 mV/ms^2, –10 to 70 ºC, 45 g for VA-11/11C, VM-82
VP-51KICurl Cable, 50 to 100 cm for PV-57I (VA-12/14, VM-82A)
VP-53SMounting Magnet with M6 Stud
VA-12015Shoulder Belt
512 MB SD Card
Protection Case
Hand Strap
Carrying Strap
Instruction Manual VA-14
Battery, IEC type R6 (6x)
קל מה שמקל על אחיזתו ביד אחת.
מסוף ה-LAN החדש מחזק את החיבור עם התקני תקשורת,
ומאפשר שליטה במכשיר והעברת קבצים מרחוק.
