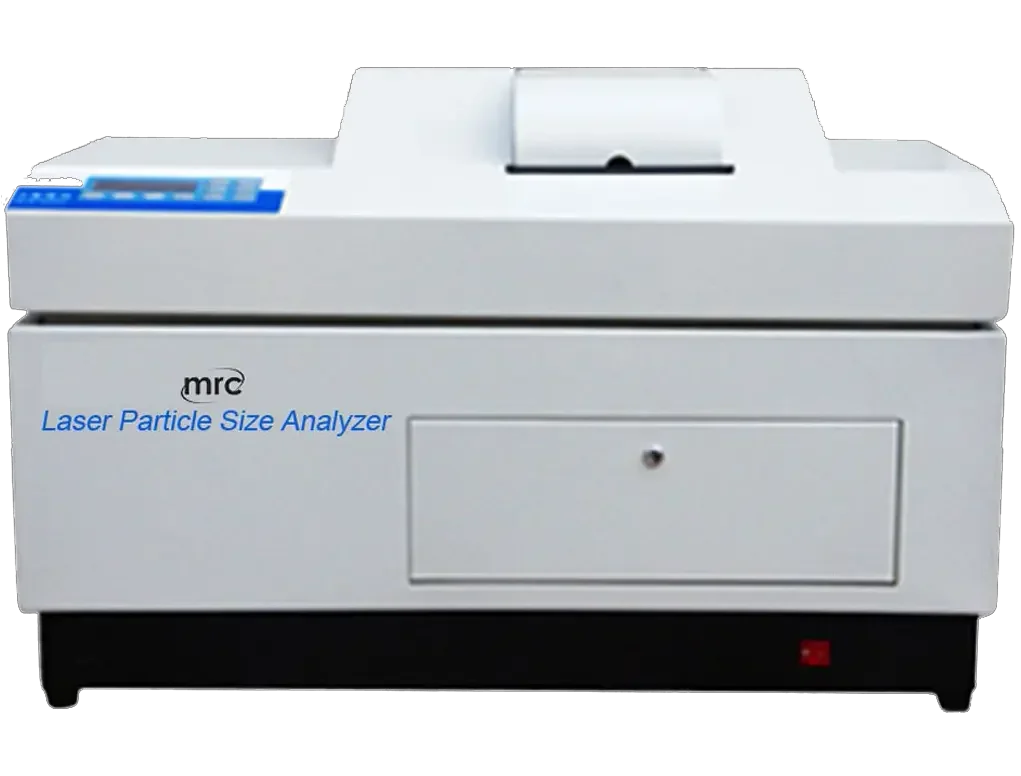

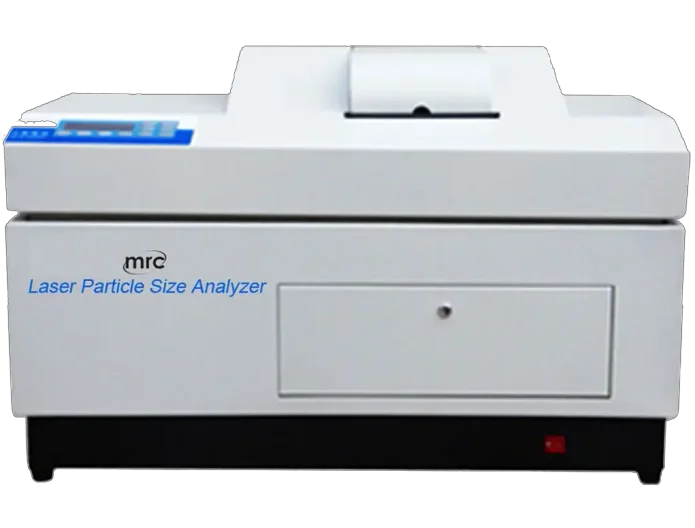

Wet Particle Size Analyzer
Measuring Range: 0.1-40µm/0.6-120µm/1-300µm
Channels Number: 32×3
Accuracy: <1% (Deviation of D50 on National standard samples)
Repeatability: <1% (Deviation of D50 on National standard samples)
Light source: He-Ne Laser λ=632.8nm p>2mW
Ultrasonic: F=40KHz power=35W time ≥1S
Agitator: 0-300rpm (adjustable)
Sample Pool: 350mL
Micro-Sample Pool: 10mL (Optional)
Operation: Key+computer control
Test Speed: <2min
Dimension: L66cm×W32cm×H40cm
Total Power: 110W
Gross Weight: 25Kg
