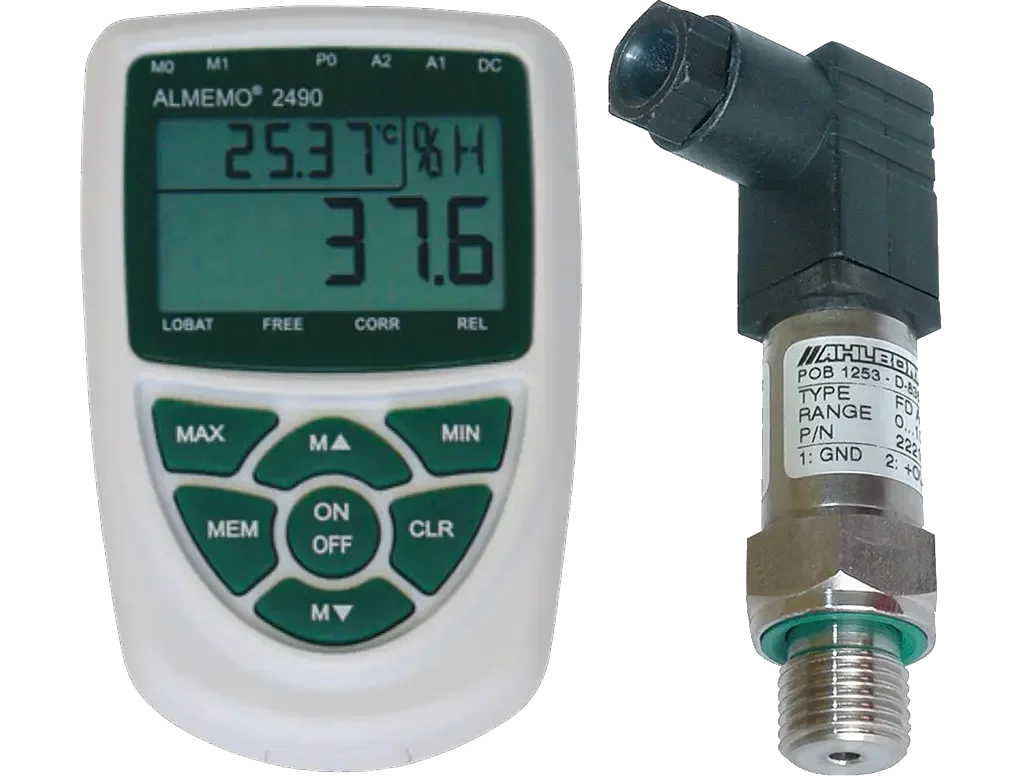

חיישן לחץ אבסולוטי 0 עד 2.5 בר כולל כבל 1.5 מטר ומחבר אלממו
Overload : 1.3 times the final value
Output signal: 0.2 … 2.2V
Category of accuracy: ±0.5% of final value
(linearity + hysteresis + reproducibility)
Temperatue drift
zero point < 0.03 % of final value /K
steepnees < 0.03 % /K
Temp. range compensate 0 ... 50 °C
Nominal conditions: 22°C ± 2K, 10 to 90% rH
non-condensing
Power supply: 6 to 15VDC, <4 mA
Operating temperature: –20 to +80°C
not flush with front
Material medium contact: stainless steel 1.4435
Weight: 75g
Electromagn. compatibility: CE marked: test acc. to IEC 801.2 and 802.2
Protection system: IP 65
