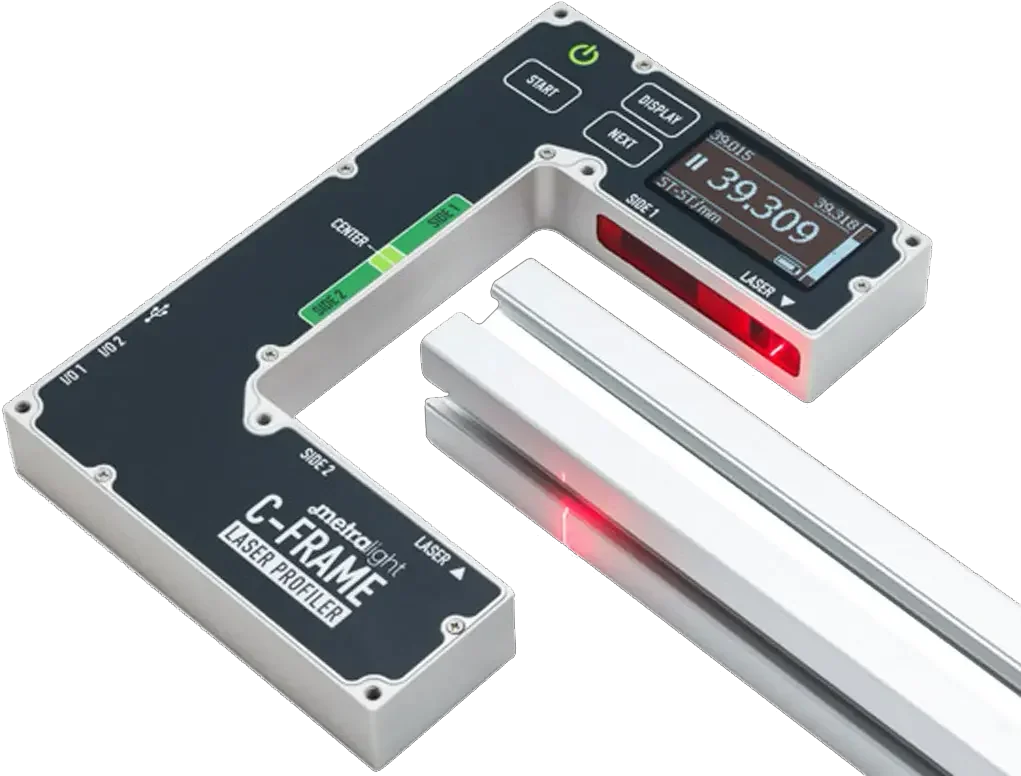

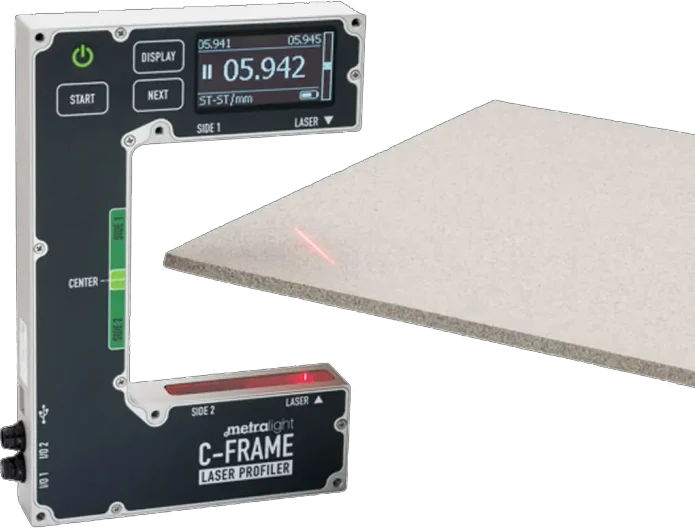

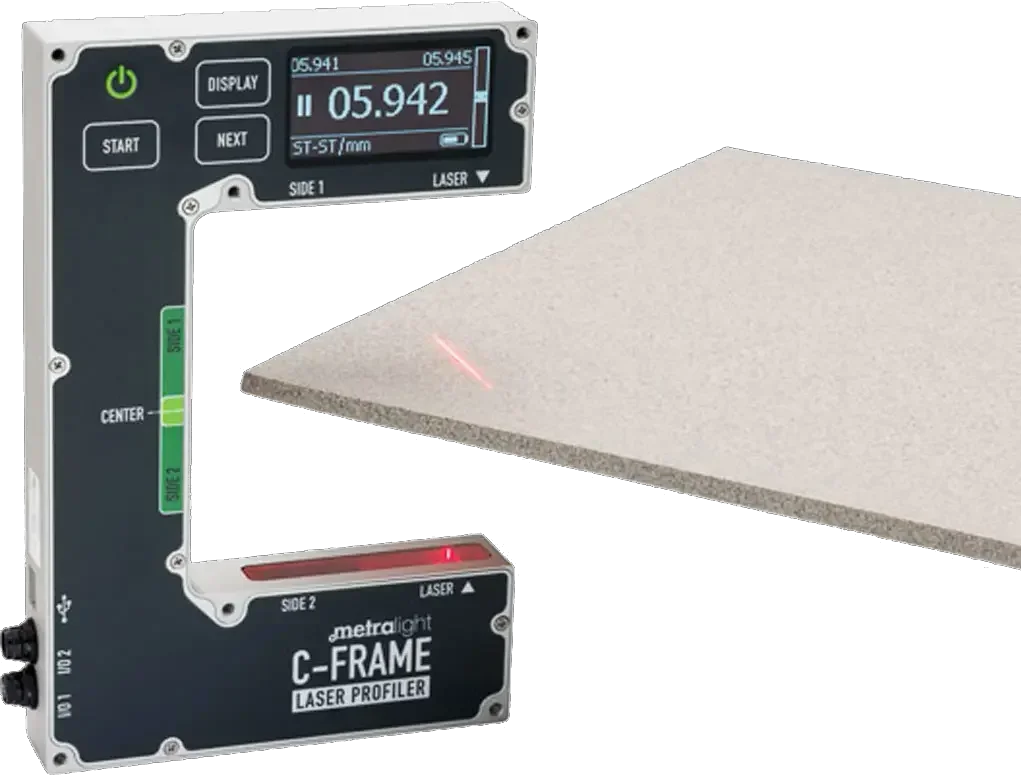

חיישן לייזר לבדיקת עובי מדוייקת

Thickness measurement range100 µm to 52 mm (0.004 to 2.05″)
Height measurement rangemax. 20 mm
Line size *40 μm × 20.5 mm
DetectorCMOS (1280×1024 pixels)
Resolution1 μm
Nonlinearity25 μm
Height Resolution24 μm
Response Time33.34 ms for full readout or faster for partial readout
InterfaceUSB 2.0
Power5V/700mA or 24V/500mA
Weight300 g
Dimensions204 × 134 × 25 mm (8.04 × 5.28 × 0.98 in)
Laser650 nm, Class IM, P<3mW
