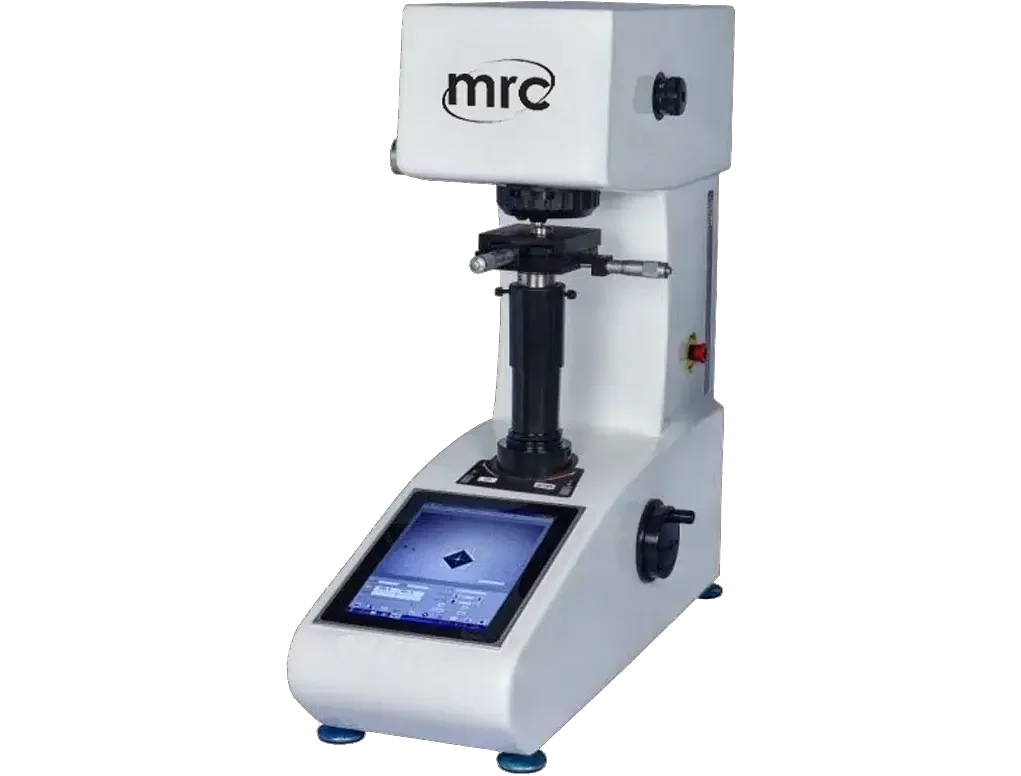

מד קושי מיקרו-ויקרס דיגיטלי עם מסך מגע

Test Force
gf 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
N 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range 1HV~2967HV
Test Mode HV (HK is optional)
Loading Method Automatic (Loading/Dwell/Unloading)
Turret Automatic Turret
Computer CPU: Intel I3, Memory: 2G, SSD: 32G
CCD Pixel 1.30MP
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N,
HR15T, HR30T, HR45T, HS, HBW
Hardness Reading Indentation Displaying and Automatic Measuring on Touch Screen
Data Output WORD or EXCEL Report with Curve Chart
Objective 10x (Observe), 40x (Measure)
Total Magnification 100x, 400x
Resolution 0.0625μm
Dwell Time 0~60s
Light Source Halogen Lamp
Motorized X‐Y Test Table Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen 150mm
Throat 120mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Dimension 620×233×635mm, Packing Dimension: 650×380×860mm
Weight Net Weight: 48kg, Gross Weight: 62kg
