Capacity5 litre
Dimensions65 mm inside diameter, 265mm
overall height, 2.2kg empty
CertificationASME Section VIII-01, Div. 1
Directive 2014/68/EU Article 4 Clause 3
For group 2 liquids
MaterialWetted parts 303 stainless steel & Clear Acrylic or Toughened glass cylinder

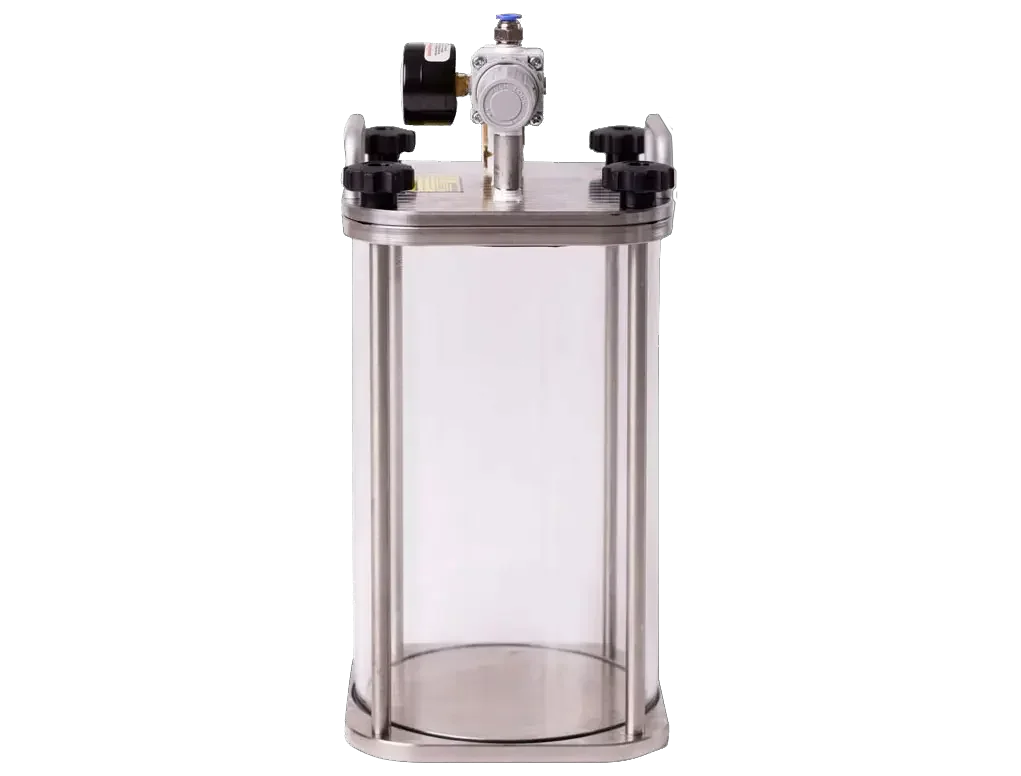

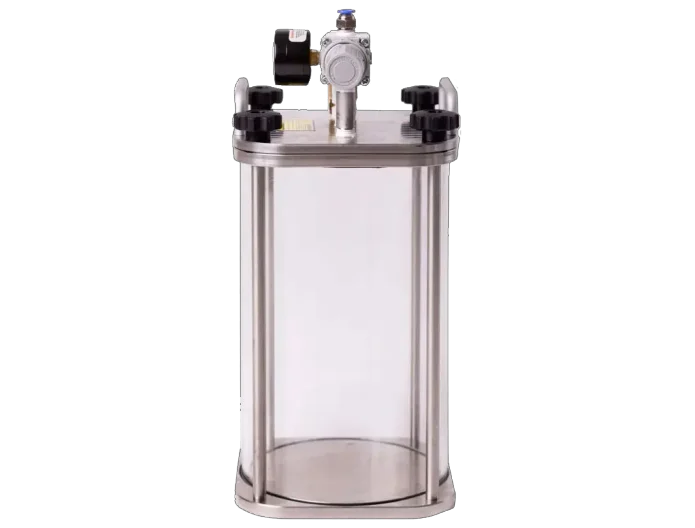

ShellCylindrical
Working Rated Pressure0 to 4 bar at from 0°C to 38°C
Working Rated Vacuum0 to -1 bar at from 0°C to 38°C
Closure3 plastic star grips
Closure sealViton O-ring
Top & Bottom SealsViton
Internal finishMachined
External finishMachined
