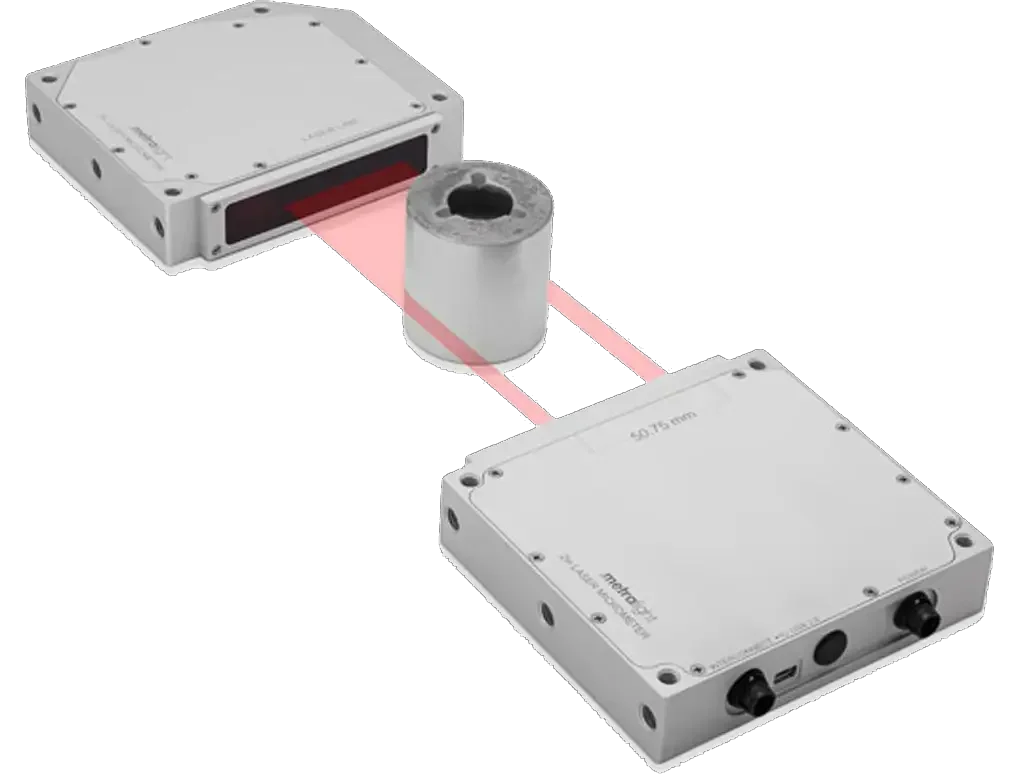

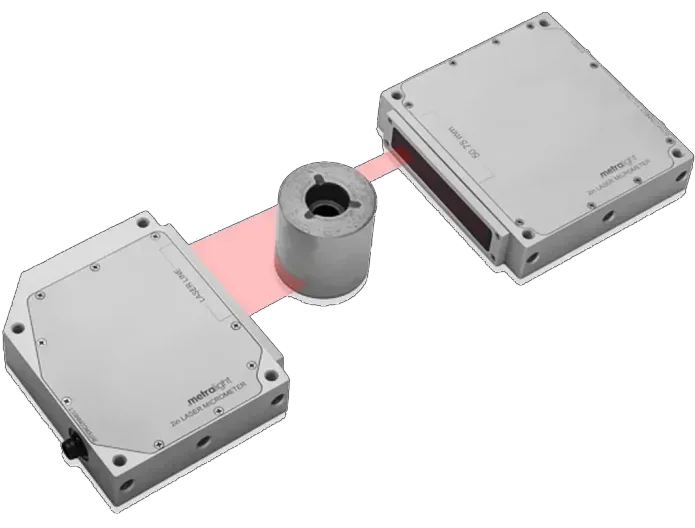

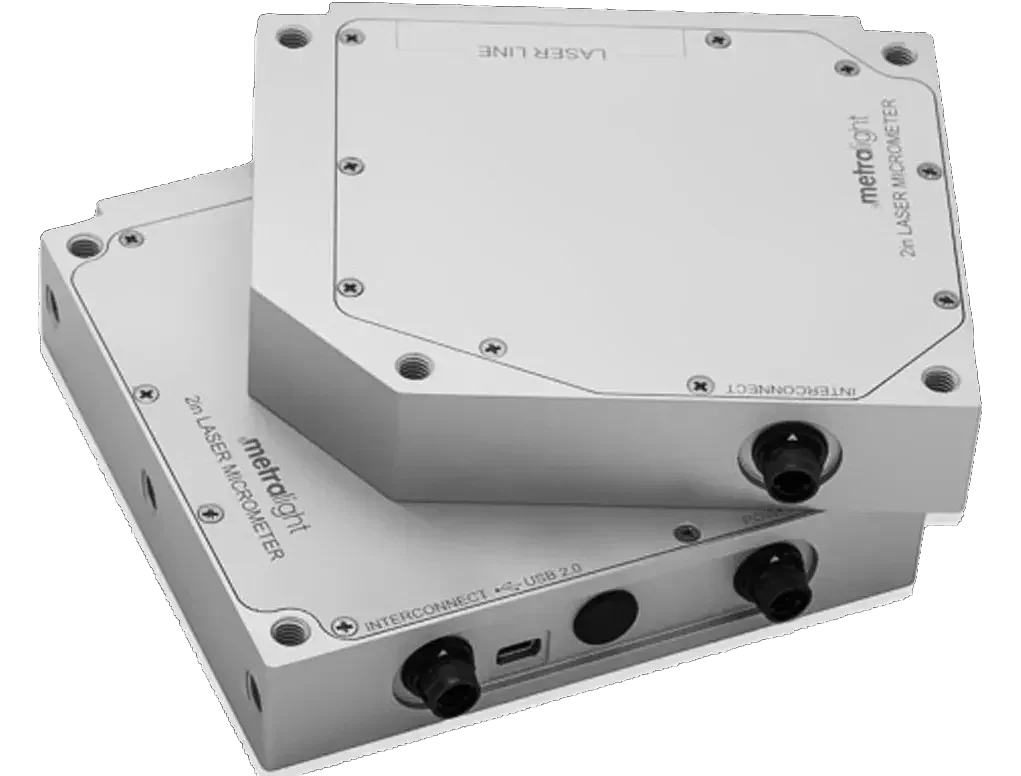

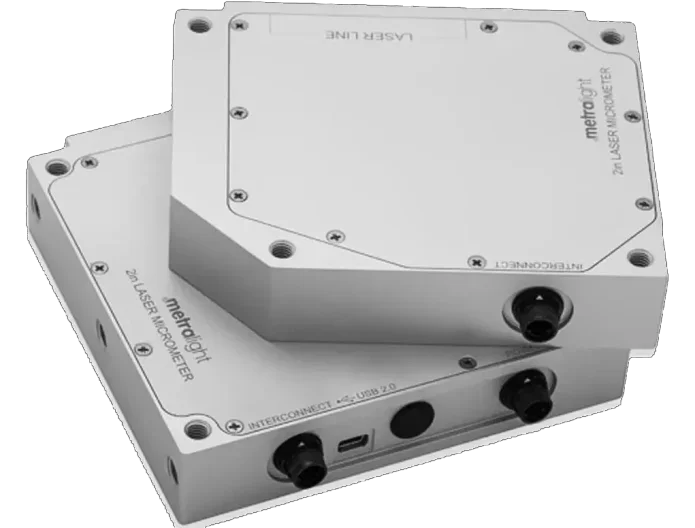

מיקרומטר אופטי לחלקים גדולים

Measurement Range2.0″ (50.75 mm)
Resolution0.4375 µm
Repeatability10 µm (Edge Position, Calibrated Distance)
Response Time0.712 ms
Non-Linearity< 15 µm (Edge Position, Calibrated Distance)
Measuring ModesEdge1, Edge2, Diameter, Gap, Center, Solid
I/O ConnectorsDB9, DB25, DB37, Mini-B USB, RJ-45, or custom
I/O InterfaceSerial (RS232), Analog (Voltage), Parallel Binary (TTL), USB, Ethernet, 4 Relays or OC Transistors (NPN), 2 Optocoupler Inputs
Power18 to 24VDC / 300 mA
Display (optional)Touch OLED
Overall DimensionEmitter: 4.72″ x 3.74″ x 0.98″ (120 x 95 x 25 mm), Receiver: 4.72″ x 4.33″ x 0.98″ (120 x 110 x 25 mm)
Weight21.1 oz (344 g)
Operating Temperature32ºF to 122ºF (0ºC to 50ºC)
Storage Temperature-4ºF to 158ºF (-20ºC to 70ºC)
