מתאים ליישומים בביוטכנולוגיה,
זיהוי פלילי וטכנולוגיה רפואית
זיהוי זיהום בלתי נראה על משטחים ומתאים
לניתוח מרכיבים ואבחון סלולרי
טווח אורכי גל 220 …380 ננומטר
חיישן CMOS עם תאורה אחורית
Spectroscopic method Transmission Grating Spectroscopy
Spectral range 400-1700nm
Spectral band 680
Spectral resolution 13nm
Slit width 25um
Spectral efficiency 60%
Stray light 0.5%
Number of spatial pixels 1280
Pixel size 5um*5um
Imaging speed Full band 100fps
Detector InGaAs
SNR (Peak) 600/1
Camera output interface USB
Camera lens interface C-Mount
Built-in embedded data acquisition and processing unit Embedded processor 512GSSD storage
Heat dissipation method Internal air cooling
Accessories Reflectivity Calibration Plate
Lens focal length 25mm
Lens field of view ＞25°

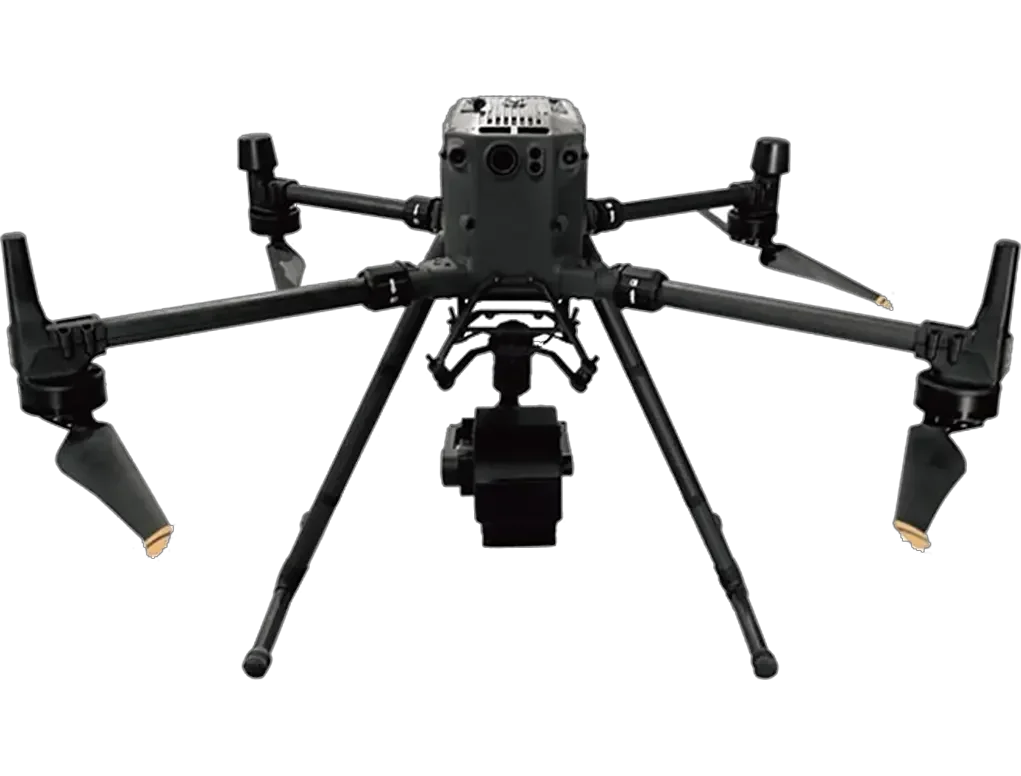

Operation method Easy to operate, no professional drone operator is required, and single-person operation is possible
Observation method Through the ground station to observe the aircraft sampling location, hyperspectral
images, spectral data in real time, function
Correction method Reflectivity correction and area correction support batch processing
Data format Compatible with spe format, hdr format, scp format
Application software Our UAV, Merage puzzle software, Studio application software image analysis software
