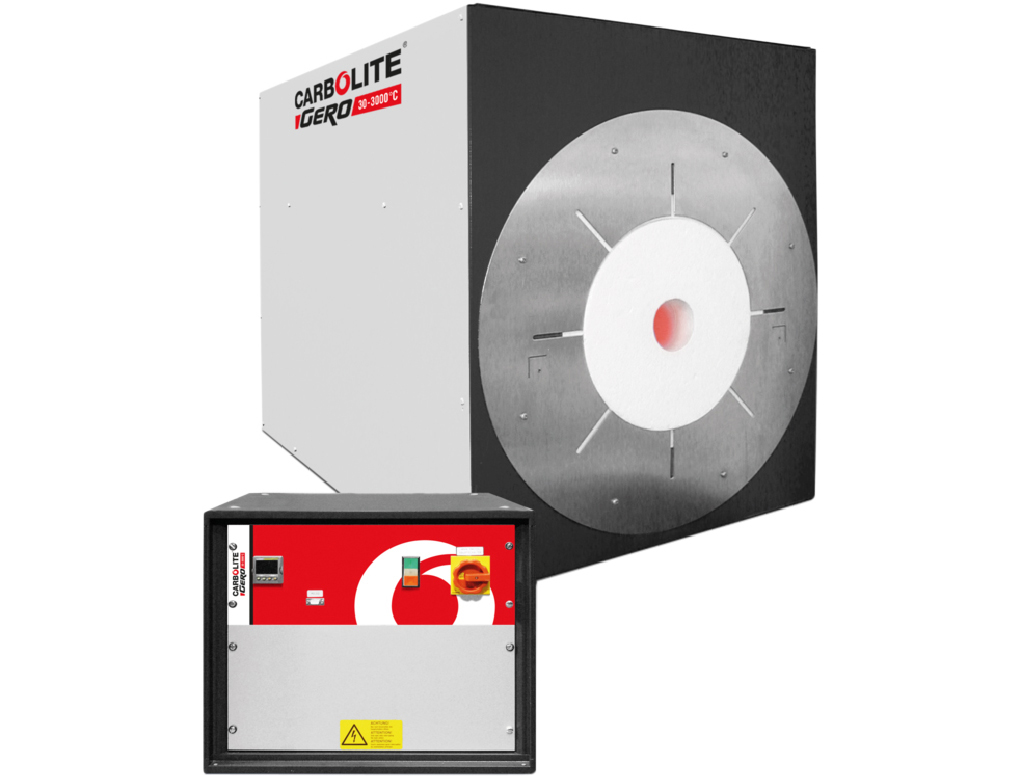

Horizontal High Temperature Tube Furnace up to 1700 °C,
Molybdenum disilicide heating elements,
1700 °C max. temperature, 300 mm heated length,
590 mm total furnace length, 70 mm max. outer work tube diameter,
without work tube, 620 x 590 x 520 mm (HxWxD) outer dimensions furnace,
3 metre cable to separate control module, plug adds 150 mm to depth of control module,
850 x 560 x 500 mm (HxWxD) outer dimensions control module,
Digital PID-Controller E3216P1 with 8 programmable segment pairs (8 ramps and 8 dwell times),
Adjustable digital over temperature protection with separate thermocouple and controller E2132i,
Power supply: 400 V, 3 phases, Earth + Neutral, 50 Hz, 6.4 kW, .
