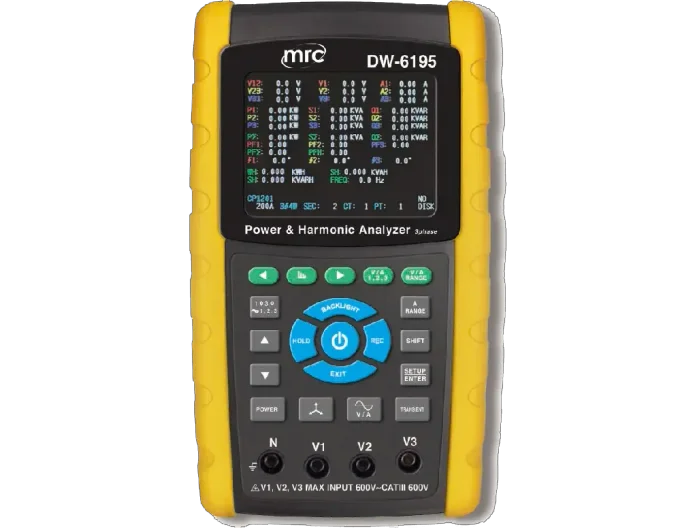

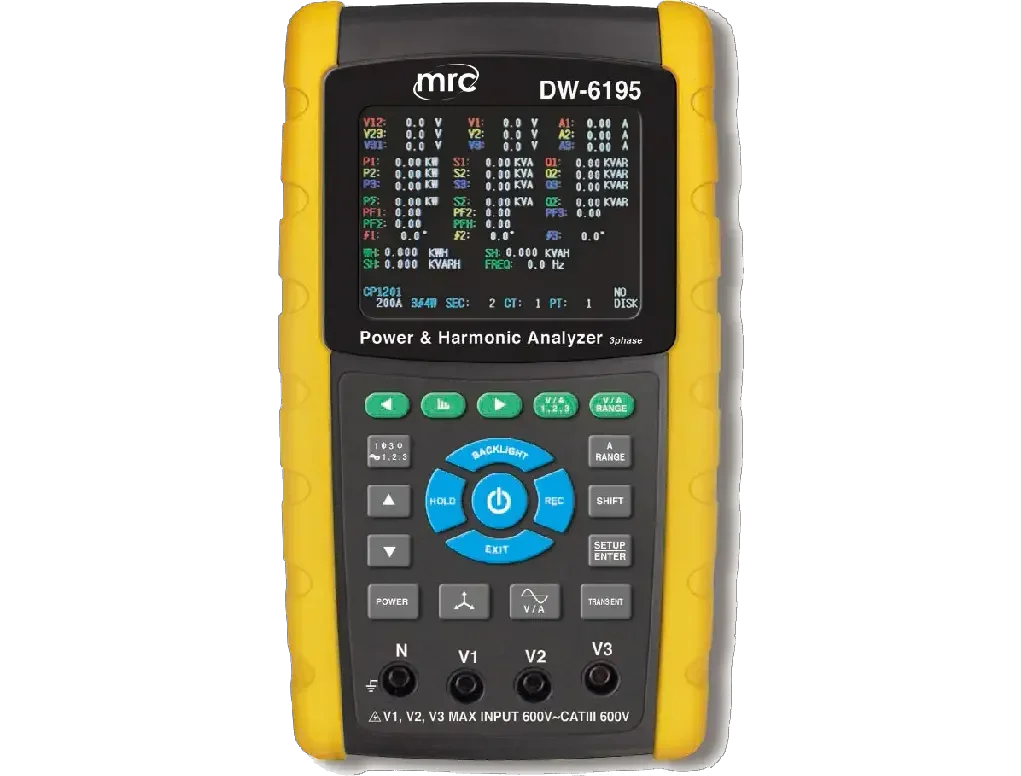

3 PHASE POWER ANALYZER, with harmonic measurement
*Color LCD display.
*Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W.
*3 current probes ( CP-1201 ) are included, if change the current probes, the calibration procedures are not necessary.
*Current probe input signal/ranges with selection :
Input signal ( ACV ) :
200 mV/300 mV/500 mV/1 V/2 V/3 V.
Ranges ( ACA ) :
20 A/200 A/2000 A/30 A/300 A/ 3000 A /6000A.
*Meter can cooperate the universal current probes.
*Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Clamp Probe
( CP 1201 ), AC to DC 9V adapter, 4G SD memory card and Carrying bag.
*Measurement :
V ( phase-to-phase ), V ( phase-to-ground ) A ( phase-to-ground ).
KW / KVA / KVAR / PF ( phase ). KW / KVA / KVAR / PF ( system ).
KWH / KVAH / KVARH / PFH ( system ). Phase angle.
*Harmonics display ( 1-50th order ).
*Simultaneous display of Harmonics and Wave form.
*Display of Wave form with Peak ValuAnalysis of Total Harmonic Distortion ( THD ).
*Graphic Phase diagram with 3-Phase system parameters.
*3 phase Voltage or Current Unbalanced Ratio ( VUR, AUR ) and Unbalanced Factor.
*Calculated Unbalanced Current through Neutral Line ( An ).
*Capture Transient events ( including Dip, Swell and Outage ) with programmable threshold ( % ).
*Programmable CT ratio ( 1 to 600 ) and PT ratio ( 1 to 1000 ).
*ACV input impedance is 10 Mega ohms.
*Safety Standard : IEC 1010, CAT III 600V.
*Built-in clock and Calendar, real time data record with SD memory card , sampling time can be set from 2 to 7200 seconds. Just slot the SD card into the computer, all the measured values with the time information ( year, month, data, hour, minute, second ) can be downloaded to the Excel directly, then users can make the further data analysis by themselves.
*Powered by AA ( UM-3 ) DC 1.5 V X 8 batteries ( Alkaline type ) or DC 9V adapter.
*Computer data output, can cooperate with optional USB Cable/USB-01, RS232 cable/UPCB-02 and Data Acquisition software, SW-U811, SW-E802.
*Optional current probes :
CP-1201, CP-200, CP-2000, CP-3000, CP-3001, CP-6001, CPF-3002.
*User can order the meter only ( without the current probes ) with the special request if intend to cooperate their own current probes.
*DW-6195 and DW-6095 are the same shape, but the Display screen is a color LCD, replace the original monochrome LCD.
*Patented.
