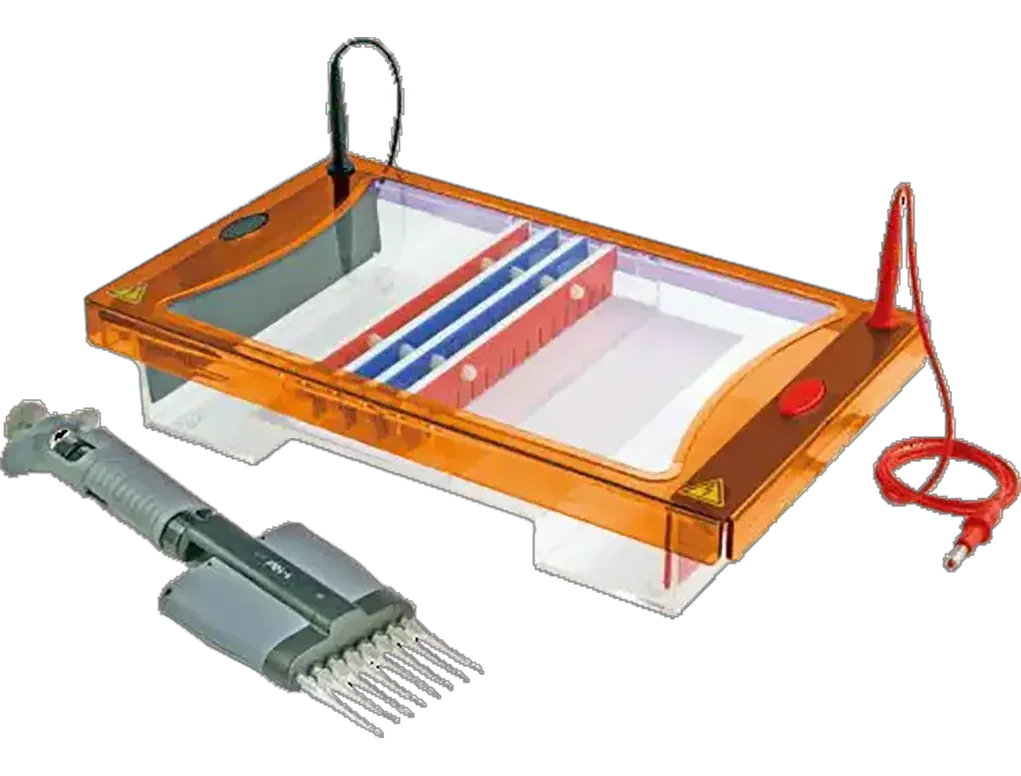

Horizontal gel electrophoresis unit
The ME20-10-20 set includes two trays — ME20-UV10 (200 × 100 mm) and ME20-UV20 (200 × 200 mm)
include 20x20,10cm uv tray
sample combs
maximum sample-100
unit dimensions 22x12.5x9cm
low buffer volumes
ideal for rapid electrophoresis
Unit Dimension (W x L x H) 395 x 230 x 90mm
Gel Dimension (W x L) 200 x 100mm
200 x 200mm
Maximum Sample 200 for 200 x 100mm Tray (4 x 50 sample combs) )
450 for 200 x 200mm Tray (9 x 50 sample combs)
Buffer Volume 1200ml
Construction Injection molded construction
Durable, leak proof environment for complete safety and long life
Cassette Type Electrode Inexpensive, easy to replace
Made of 99.99% corrosion resistant pure platinum
Electrical Safety Lid can only be fastened in one way
On removal, power is disconnected from buffer chamber
Rapid Casting Gel Use casting dams
