Other Colorimetric Index:
Haze(ASTM D1003/1044,ISO13468),Transmittance T(ISO),Transmittance T(ASTM)
ptical Geometry Transmittance：
0/D (Parallel light illumination, diffuse viewing);
Conform to the standards:
ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,
JJF 1303-2011,CIE 15.2,JIS K7105，JIS K7361,JIS K 7136
Characteristic The instrument can easily achieve ASTM D1003 non-compensation method,
full light transmittance,haze test.
Open measuring area for vertical and horizontal testing.
In glass processing, plastic processing, film, screen processing,
packaging and other industries are widely used in transmittance,haze detection.
Integrating Sphere SizeΦ154mm
Light Source400nm to 700nm, combined LED light
SensorThe PD array detector satisfies CIE V(λ)2 degree visual response
Measurement range0~100%
Measuring ApertureΦ20mm/Φ15mm/Φ8mm/Φ4mm(Select a single aperture)
Sample SizeThickness ＜170mm
Other Colorimetric IndexHaze(ASTM D1003/1044,ISO13468),Transmittance T(ISO),Transmittance T(ASTM)
Observer Angle2°
IlluminantD65,A,C
Displayed DataPASS/FAIL Result
Measuring TimeAbout1.5s
Resolution0.01unit
RepeatabilityΦ20mm,within 0.05 (After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 30 for 30 times were taken at intervals of 5s.)
Inter-instrument ErrorΦ20mm,with 0.4 (After the instrument is preheated and calibrated, the standard deviation between the standard haze tablet and the reference value is tested at an interval of 5s.)
DimensionL*W*H=290X211X511mm
WeightAbout7.6kg
PowerAC 24V, 3A Power adapter power supply
Illuminant Life Span5 years, more than 3 million times measurements
Display7-inch TFT color LCD, Capacitive Touch Screen
Data PortUSB, Print serial port
Data StorageStandard 1000 pcs,sample 20000 pcs
LanguageSimplified Chinese,Traditional Chinese,English
Operating Environment0~40℃（32~104°F）
Storage Environment -20~50℃（-4~122°F）
Standard AccessoryPower Adapter, User Guide,Quality Management Software (download from the official website),USB cable,0% calibration box, measuring aperture.

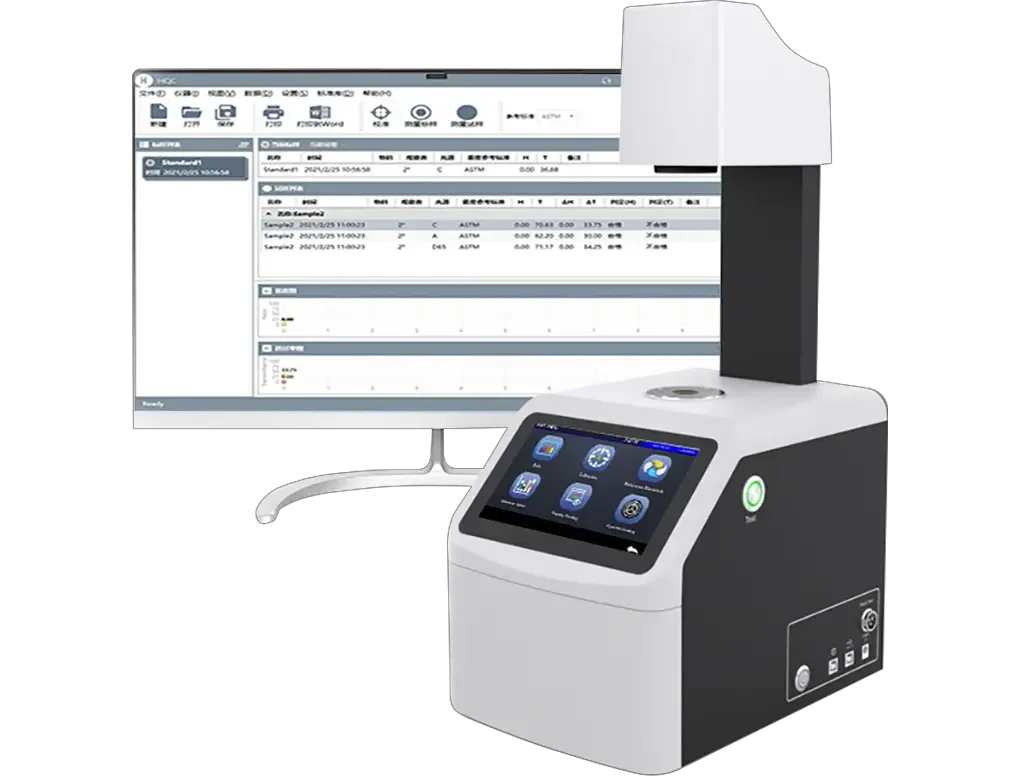

YH1200 haze meter can easily achieve
ASTM D1003 non-compensation method,
ISO 13468 compensation method,
full light transmittance,
haze test.Open sample bin can be
vertically and horizontally tested to
accommodate more samples to be tested.

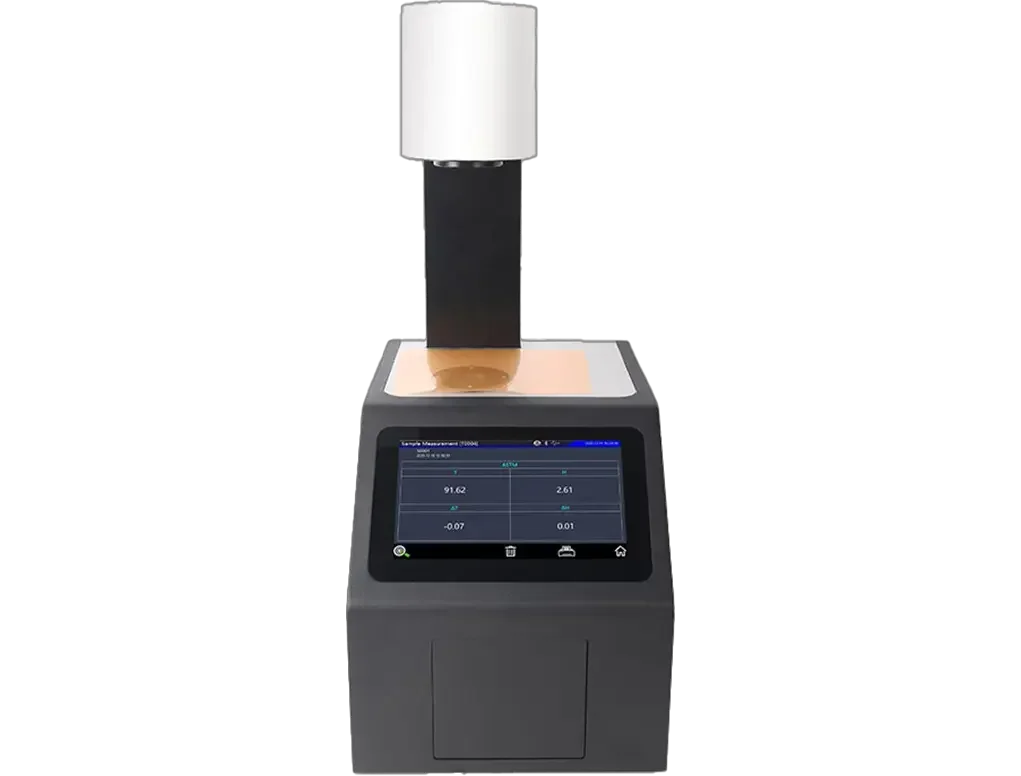

The YH1200 haze meter uses a
PD array detector to meet the
CIE V(λ)2 degree visual response.
The compensation method can
be used to measure the light transmittance
and haze with high precision and repeatability.
