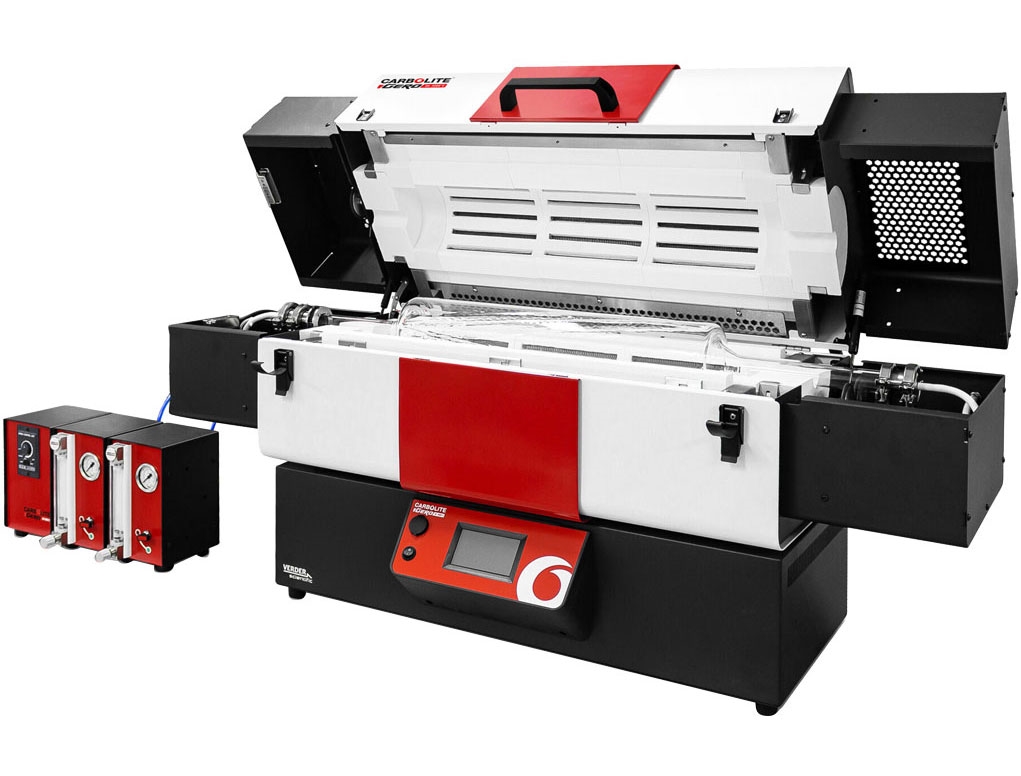

1100°C, 1000mm Heated length,
single zone rotary reactor tube furnace
Max temp (°C) 1100
Reaction chamber
dimensions (mm) ø 120 x 930
Reaction chamber capacity (ml) 1730
Oscillation frequency per min 1 to 8
Rotation in each direction 315°
Dimensions: External Hx W x D (mm) lid closed 445 x 1715 x 575
Dimensions: External Hx W x D (mm) lid open 705 x 1715 x 655*
Max power (W) 3810
Weight (kg) 132
