מתאים ליישומים בביוטכנולוגיה,
זיהוי פלילי וטכנולוגיה רפואית
זיהוי זיהום בלתי נראה על משטחים ומתאים
לניתוח מרכיבים ואבחון סלולרי
טווח אורכי גל 220 …380 ננומטר
חיישן CMOS עם תאורה אחורית
Spectroscopic method Transmission Grating Spectroscopy
Spectral range 400-1000nm
Spectral band 1200
Spectral resolution 2.5nm
Slit width 25um
Spectral efficiency 60%
Stray light 0.5%
Number of spatial pixels 1920
Pixel size 5.86um*5.86um
Imaging speed Full band 128fps
Detector CMOS
SNR (Peak) 600/1
Camera output interface USB3.0
Camera lens interface C-Mount
Built-in embedded data acquisition and processing unit Embedded processor 512GSSD storage
Heat dissipation method Internal air cooling
Camera size 155*95*119mm (length*width*height)
Accessories Reflectance calibration plate
Focal length of spectral camera lens 25mm
Field of view of spectral camera lens ＞25°
Measurement accuracy of lidar system 5cm
Lidar ranging distance 300m
Lidar scanning field of view angle 40.3° (vertical) * 360° (horizontal)
Lidar point frequency 640,000 points/second (single echo) 1,280,000 points/second (double echo) 1,920,000 points/second (triple echo)
Lidar built-in camera pixel 26 million (6252*4168)
Lidar lens focal length 16mm

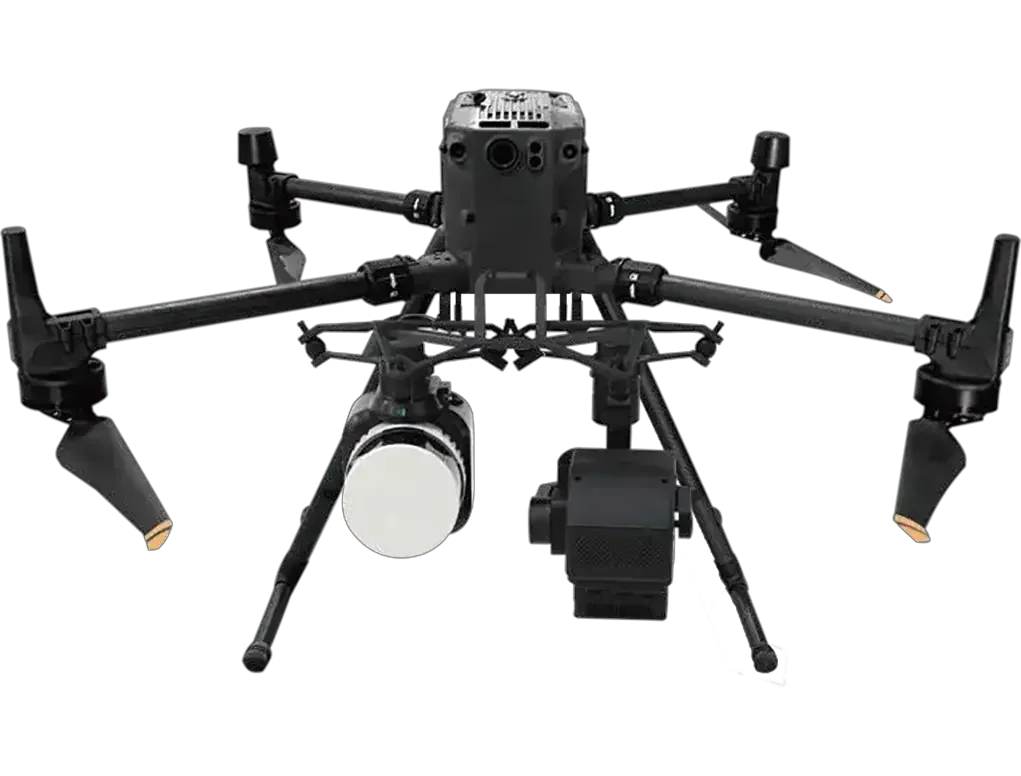

Flight platform DJI M350 RTK / M300 RTK.
Aircraft size Unfolded state, without blades: length * width * height 810*670*430 mm Folded state, with blades: length * width * height 430*420*430 mm
Aircraft weight Empty aircraft without battery: about 3.77 kg. Empty aircraft with battery: about 6.47 kg
Maximum takeoff weight of aircraft 9.2kg
Fastest ascent speed of aircraft 6m/s
Maximum horizontal flight speed of aircraft 23m/s
Longest flight time 55 minutes (measured in a windless environment and under no-load conditions by flying forward at a speed of approximately 8 meters per second until the remaining battery power is 0%. For reference only. The actual usage time may vary due to different flight methods, accessories, and environments)
