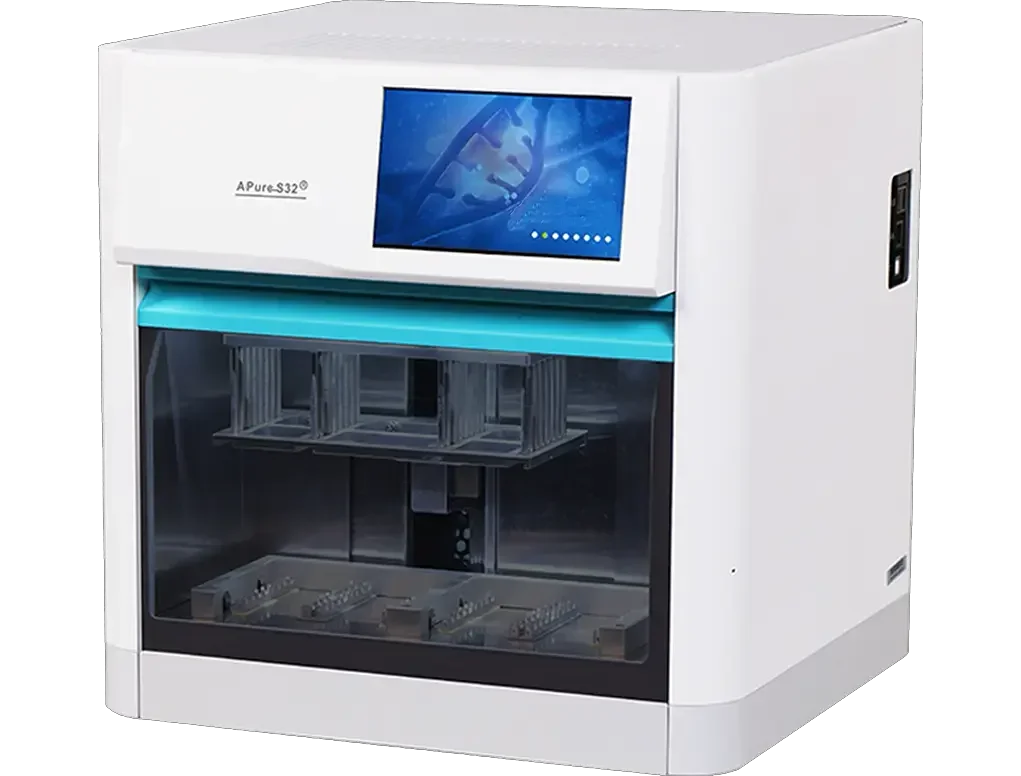

מערכת לטיהור חומצות גרעין

Principle Magnetic bead method
Throughput 1~32
Plate type 96 deepwell plate
Process volume /μL 30~1000
Stability CV≤5 %
Heating for lysis tube RT.~120℃
Heating for elution tube RT.~120℃
Heating time RT.~120 ℃≤4 minutes
Cooling time 100 ℃~40 ℃ time≤10 minutes (RT.25 ℃)
Temperature precision ±0.5 ℃
Temperature uniformity At 100 °C, ±1 °C
Shake mixing 1-10 gear can be set
Operation interface 7 inch color large touch screen
Internal procedure Up to 500 programs can be stored
Instrument interface 2 USB (dual A type), 1 USB (B type), 1 Ethernet port
Network Reserved 4G network
Barcode scanning Automatically identify program/sample and other information after scanning
Sterilization UV sterilization
Purification filter Equipped with a purification and filtration system to effectively reduce the risk of cross-contamination such as aerosols
Power supply AC110-240 V, 50 Hz/60 Hz, 350W
Dimension (W×D×H) mm 417×410×426
Weight (kg)20KG
