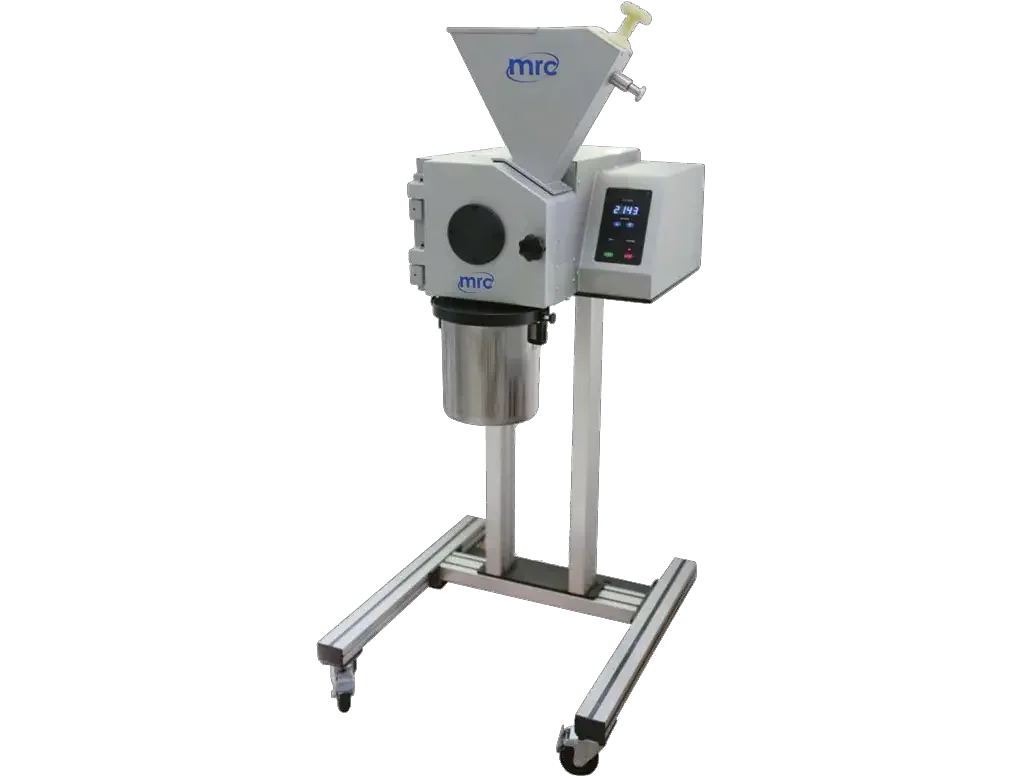

Laboratory cross beater mill is suitable for coarse and fine
size reduction, either in batches or continuously.
It can process medium-hard and brittle materials with a hardness
of up to approx. 6 on Mohs’ scale.
Working principle beating impacting
The sample is crushed between the impact plate
and the gear of the embaded part.
Feed material property medium-hard, brittle
Feed size <25mm
Final fineness <100 µm
Collecting container volume 5 or 30 Liters
Application●cement clinker●Coke●Glass
Grave●Minerals●Ores●oxide ceramics●Slags●Soils
