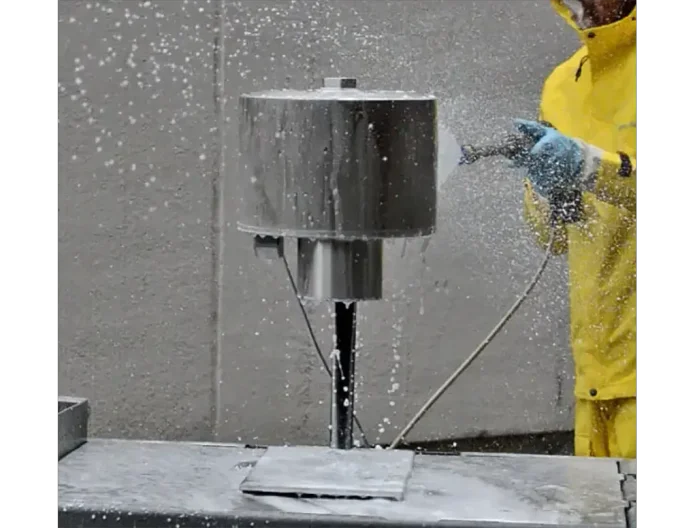

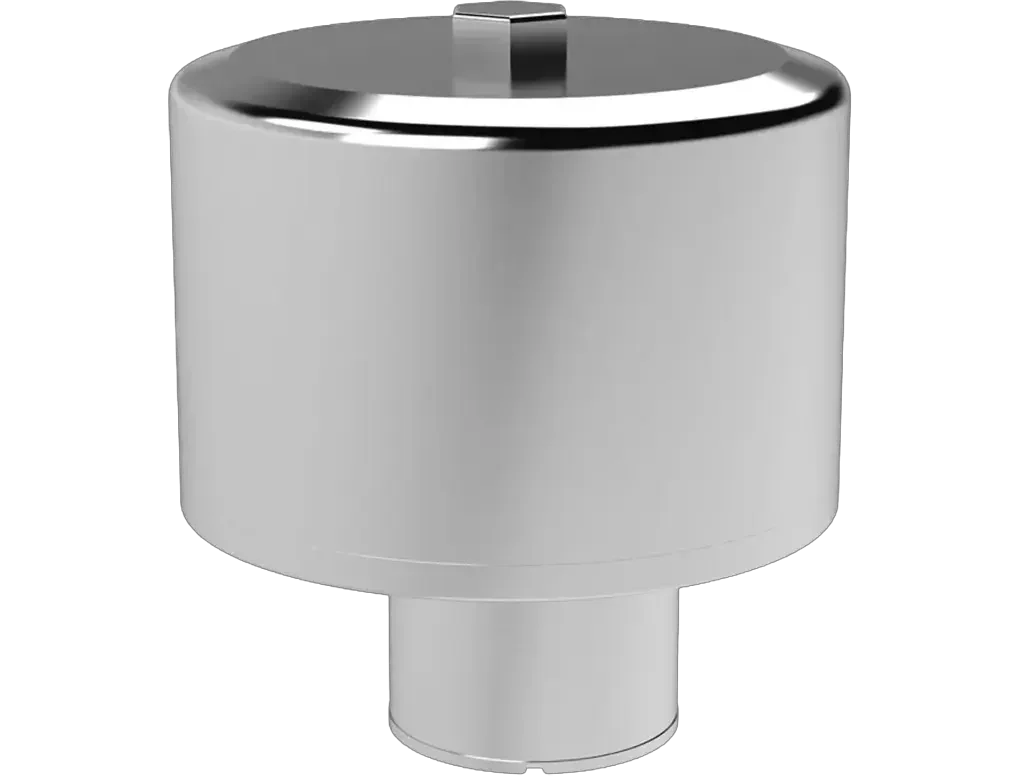

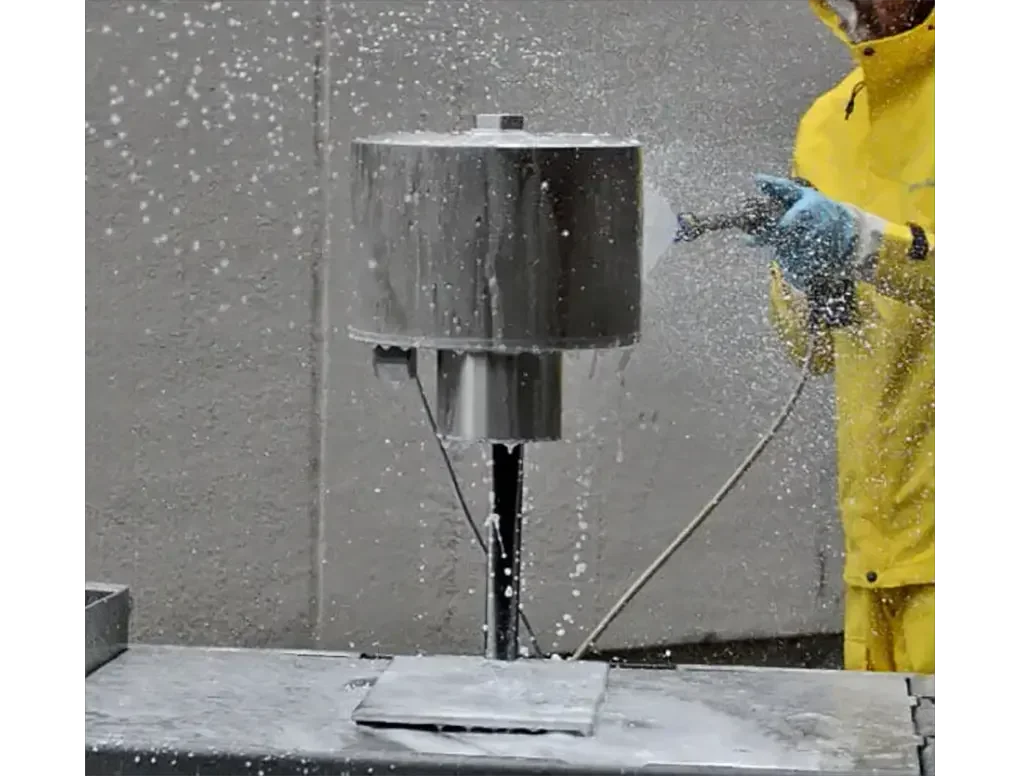

Sensor EnclosureIP69 rated stainless steel
Reading SpeedUp to 99 readings/second
High-Speed Gaiting Available?Yes
Communication OptionsUSB, Ethernet TCP/IP, Ethernet IP, EtherCAT, ProfiNet, ProfiBus, Modbus TCP, DeviceNet, OPC-DDE Server
Advanced featuresLamp life monitoring, motor life monitoring, vibration alarm
Product calibrations200
Measured NIR Constituents1, 2, or 3 Simultaneously
Moisture Accuracy+/- 0.1%
Fats/oil Accuracy+/- 0.2%
Wet Basis Moisture RangeMin. 0.1% Max. 90%
Dry Basis Moisture RangeMin. 0.1% Max. 400%
Transmitter/Product Distance200-450 mm (8-18 in)

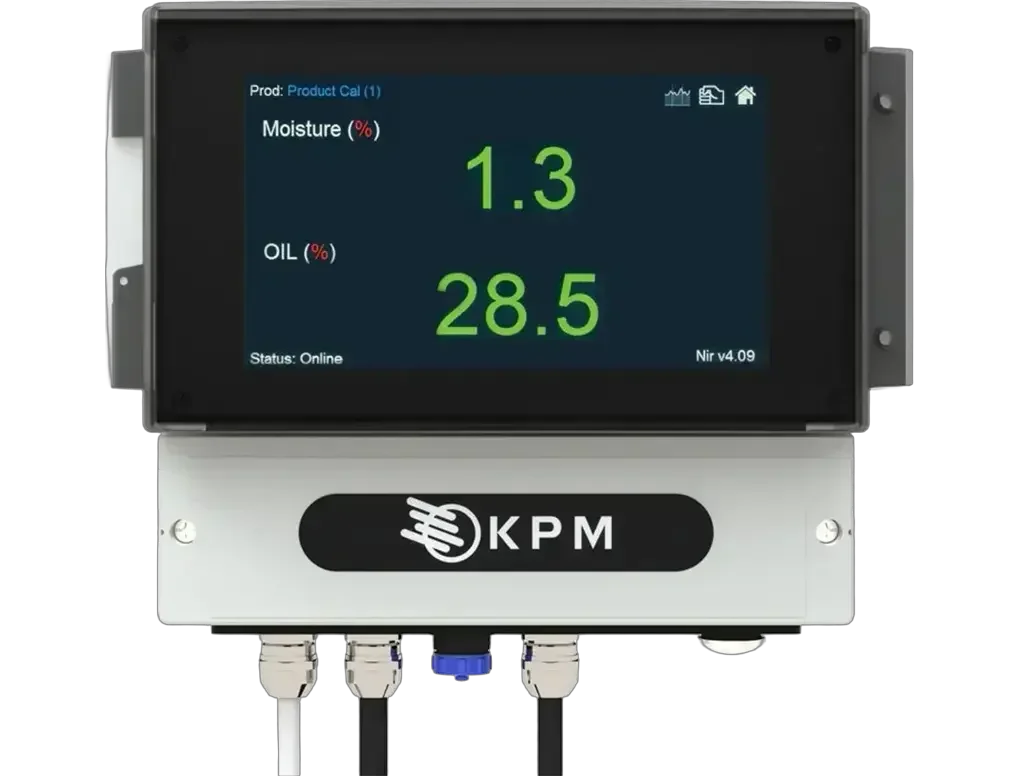

Operator Interface178 mm (7 in) touch screen (IP67)
Outputs4-20mA, 0-10V (isolated), RS-232 & RS485
Languages13 selectable languages
Weight23.6 kg (52 lbs)
Ambient Temperature0-60°C (32-140°F) With Water or Air cooling Up To 80°C (160°F)
Power Inputs110 to 240V standard. 24VDC optional
Cable3 m (10 ft) standard
ComplianceCE Certified (FCC CFR 47: Part 15: B: 2015, Industry Canada Interference-Causing Equipment Standard ICES-003: 2021)
WarrantyTwo years parts/labor; 5 years lamp replacement
