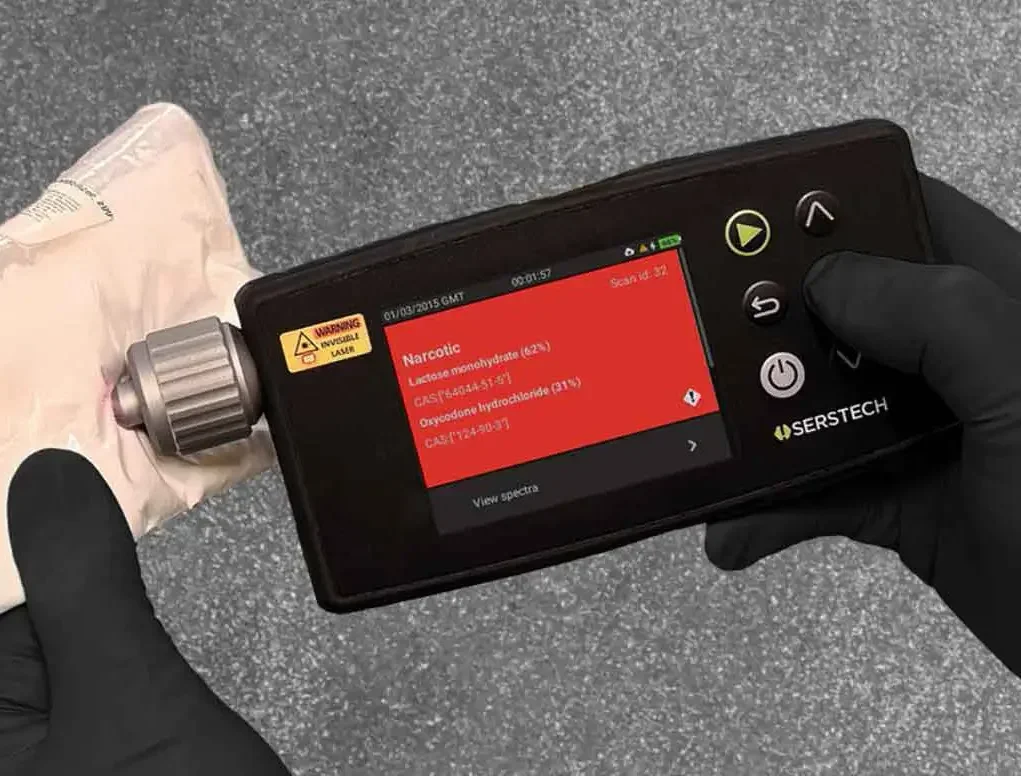

ספקטרומטר ראמאן נייד

Instrument type Handheld Raman spectrometer
Weight 590 g (1.3 lb)
Size 160 mm x 85 mm x 28 mm (6.2 x 3.3 x 1.1)
Laser excitation wavelength 785nm
Laser output power Max 300mW, user adjustable
Barcode reader Yes, QR and most common barcode formats
Max spectral range 400 cm-¹ to 2 300 cm-¹
Auto-focus Yes, 0-4mm.
Spectral resolution 8-10 cm-¹
Detector type Linear CMOS
Display 3.5” Transfl ective TFT with LED backlight, Night-vision mode
Data export formats txt, .csv, .jcamp
Connectivity USB-C, Wi-Fi (2.4 GHz), Bluetooth 5.1
Battery Rechargeable - more than 12 hours of typical use
Operating temperature -20°C to +50°C (-4°F to 122°F)
Storage temperature -30°C to +50°C (-22°F to 122°F)
Relative humidity 5-90%
Instrument Specifi cations
Start-up time Less than a minute
Scan time Most substances less than 5 sec
Exposure Auto-exposure, Multi or manual exposure, 0.001 – 60 sec
MTBF 50 000h
Approvals CE, IEC 60529 IP67, MIL-STD-810G 514.6 (vibration), MIL-STD-810G 516.6 (functional shock),
SWGDRUG category A compliant for presumptive testing, g, 21 CFR part 11 compliant
(Instrument and ChemDash), ATAK
