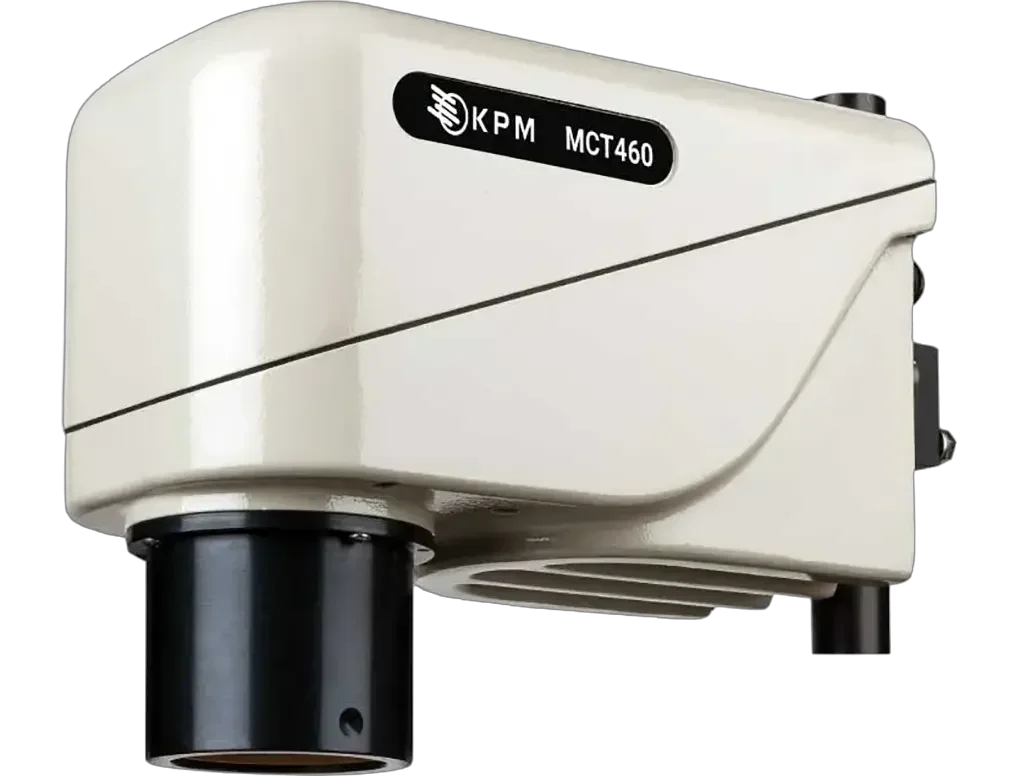

Sensor EnclosurePowder coated cast aluminum
Reading SpeedUp to 33 readings/second
High-Speed Gaiting Available?No
Communication OptionsUSB, Ethernet TCP/IP, Ethernet IP, EtherCAT, ProfiNet, ProfiBus, Modbus TCP, DeviceNet, OPC-DDE Server
Product calibrations100
Measured NIR Constituents1, 2, or 3 Simultaneously
Moisture Accuracy+/- 0.1%
Fats/oil Accuracy+/- 0.2%
Wet Basis Moisture RangeMin. 0.1% Max. 90%
Dry Basis Moisture RangeMin. 0.1% Max. 400%
Transmitter/Product Distance200-450 mm (8-18 in)

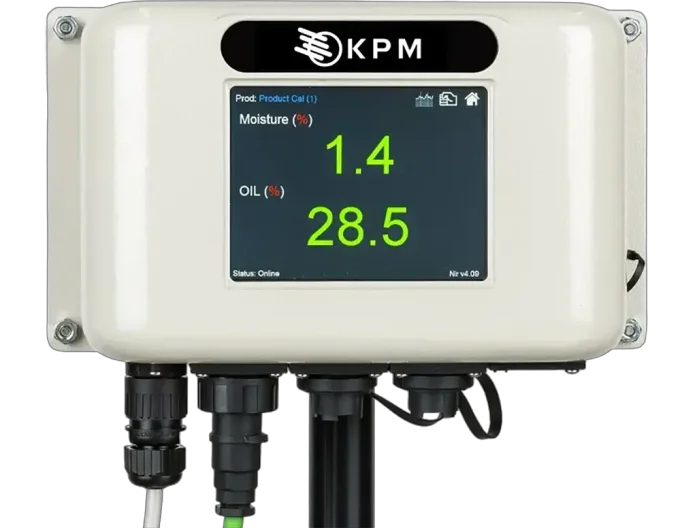

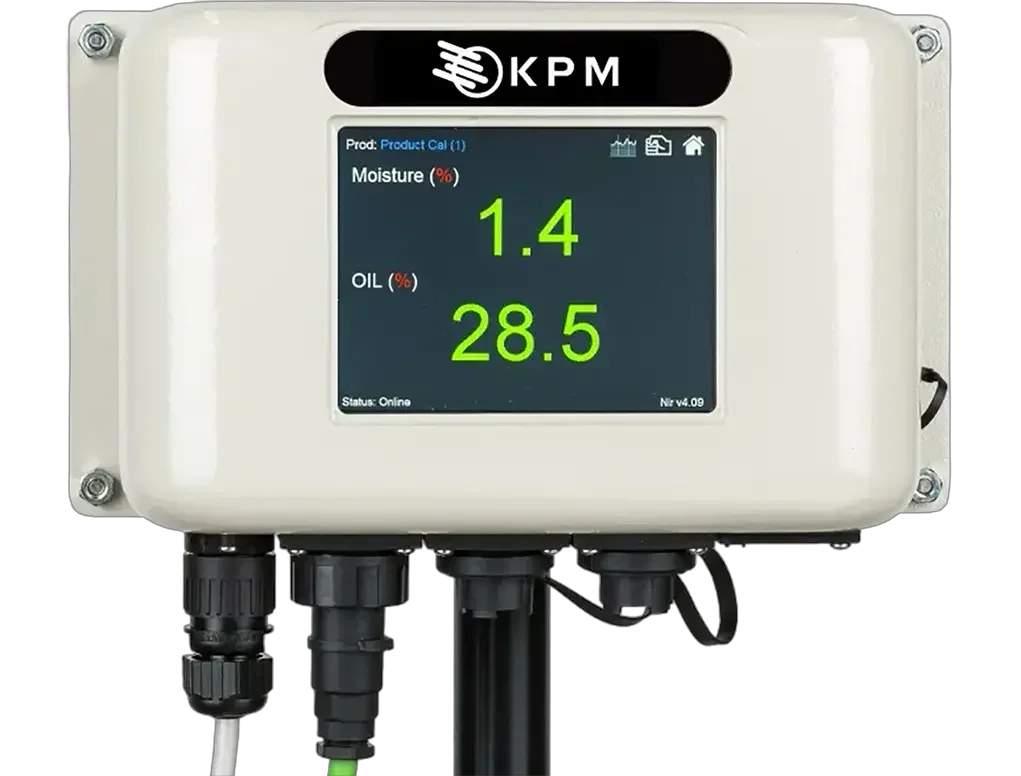

Operator Interface145 mm (5.7 in) touch screen
Outputs4-20mA, 0-10V (isolated), RS-232 & RS485
Languages13 selectable languages
Weight8.6 kg (19 lbs)
Ambient Temperature0-50°C (32-120°F) With Water or Air cooling Up To 80°C (160°F)
Power Inputs110 to 240V standard. 24VDC optional
Cable3 m (10 ft) standard; up to 30 m (100 ft)
ComplianceCE Certified (FCC CFR 47: Part 15: B: 2015, Industry Canada Interference-Causing Equipment Standard ICES-003: 2021)
WarrantyTwo years parts/labor; 3 years lamp replacement
